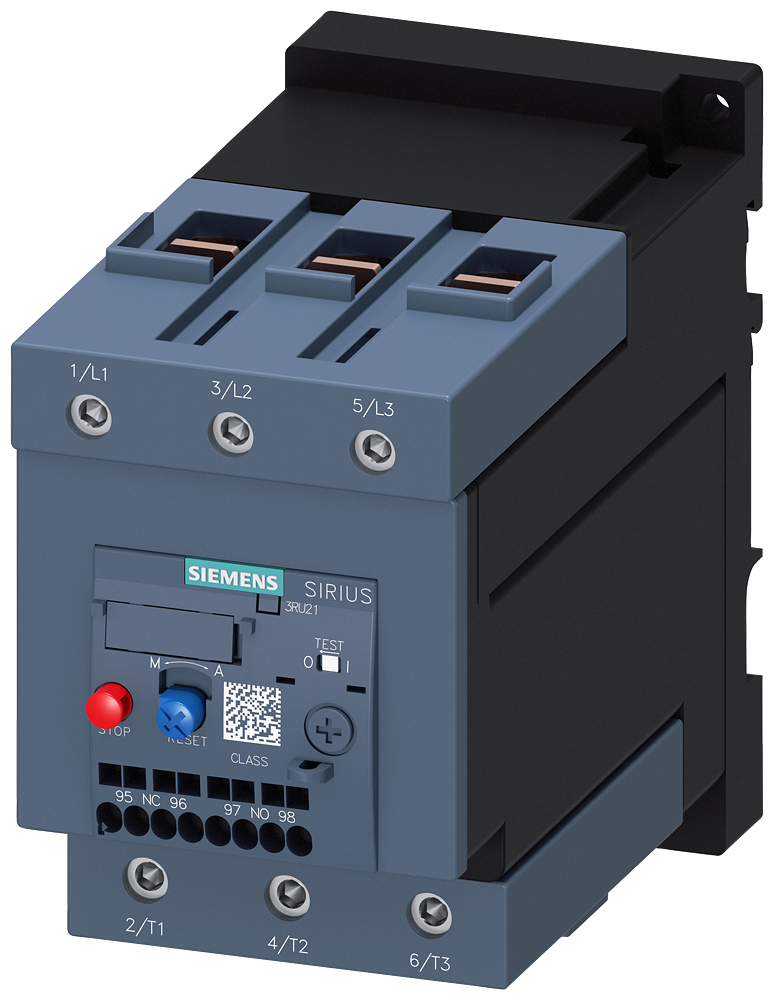

Siemens Industry THERM. OVERLOAD RELAY. 57...75 A
Siemens Industry #:3RU21464KD1
SKU: SIEM3RU21464KD1
UPC: 804766406386
SKU: SIEM3RU21464KD1
UPC: 804766406386
Edwards List Price: $462.00
Your Price: $413.95 / EA
Add to List
Buying in Bulk?
Ask about this product THERM. OVERLOAD RELAY. 57...75 A
Specification Sheet
Weight:0 lbs
Country of Origin: DE
Lead Time: 11 Days
Your Price: $413.95 / EA
Save 10%
Siemens Industry THERM. OVERLOAD RELAY. 57...75 A
Ask about this product THERM. OVERLOAD RELAY. 57...75 A
Specification Sheet
Weight:
Country of Origin:
Lead Time: 11 Days
Detailed Description
THERM. OVERLOAD RELAY. 57-75 A. FOR MOTOR PROTECTION SIZE S3. CLASS 10 FOR STAND-ALONE MOUNTING MAIN CIRCUIT SCREW TERMINAL AUX. CIRCUIT SPRING-TYPE TER. MANUAL-AUTOMATIC-RESET
| Temperature compensation / maximum: | 60 C |
| Operating current / of auxiliary contacts / at AC-15 / at 690 V: | 0.75 A |
| Operating voltage / acc. to UL 60947 / rated value: | 600 V |
| Operating current / of auxiliary contacts / at AC-15 / at 600 V: | 0.75 A |
| Operating frequency / rated value / minimum: | 50 Hz |
| Operating frequency / rated value / maximum: | 60 Hz |
| Recovery time / after overload trip / with automatic reset / typical: | 10 min |
| Recovery time / after overload trip / with remote-reset: | 10 min |
| Recovery time / after overload trip / with manual reset: | 10 min |
| Temperature compensation / minimum: | -40 C |
| Tightening torque / for main contacts / with screw-type terminals / maximum: | 6 N.m |
| Tightening torque / for main contacts / for ring cable lug / maximum: | 6 N.m |
| Tightening torque / for main contacts / for ring cable lug / minimum: | 4.5 N.m |
| Outer diameter / of the usable ring cable lug / maximum: | 19 m |
| Type of connectable conductor cross-sections / at AWG conductors / for main contacts: | 2x(10...1/0),1x(10...2/0) |
| Trip Class: | CLASS10 |
| Width: | 70 mm |
| Height: | 120 mm |
| Depth: | 140 mm |
