nVent RAIL SECOND POWER SP,AC CIRCUITS,240VAC
nVent #:EPD240TDAARB
SKU: NVENEPD240TDAARB
UPC: 782856475026
SKU: NVENEPD240TDAARB
UPC: 782856475026
Edwards List Price: $532.56
Your Price: $0.00 / EA
Add to List
Buying in Bulk?
Ask about this product RAIL SECOND POWER SP,AC CIRCUITS,240VAC
Specification Sheet
Warranty
Weight:0 lbs
Country of Origin: AU
Lead Time: 0 Days
Your Price: $0.00 / EA
Save 100%
nVent RAIL SECOND POWER SP,AC CIRCUITS,240VAC
Ask about this product RAIL SECOND POWER SP,AC CIRCUITS,240VAC
Specification Sheet
Warranty
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

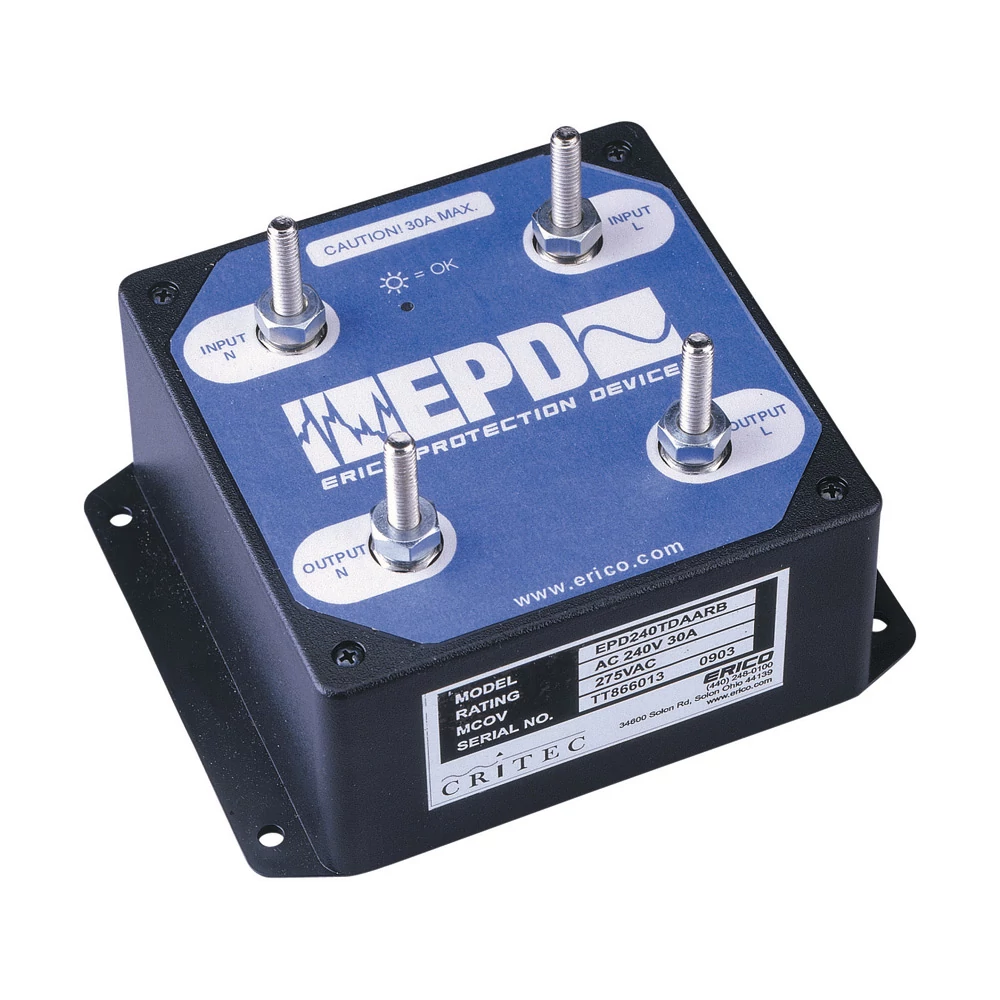

Rail Secondary Power Surge Protector, AC Circuits, 240 VAC Un
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Connection Type: | AAR Terminals |
| Protection Modes: | L-N |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Technology: | TD technology with thermal disconnect |
| Filtering: | -65 dB @ 100 kHz |
| Status Indication: | LED |
| Distribution System: | 1Ph 2W+G |
| Frequency: | 50-60 |
| Aggregate Surge Rating: | 20 |
| Nominal System Voltage (Un): | 240 VAC |
| Max Continuous Operating Voltage (Uc): | 275 VAC |
| Humidity: | 0-90 |
| Temperature: | -40-70 |
| Type: | Rail Power Surge Protection |
| Height: | 2.375-2.375 |
| Depth: | 120.65-120.65 |
| Width: | 146-146 |
| Application: | Surge Protection; Power Connections |
