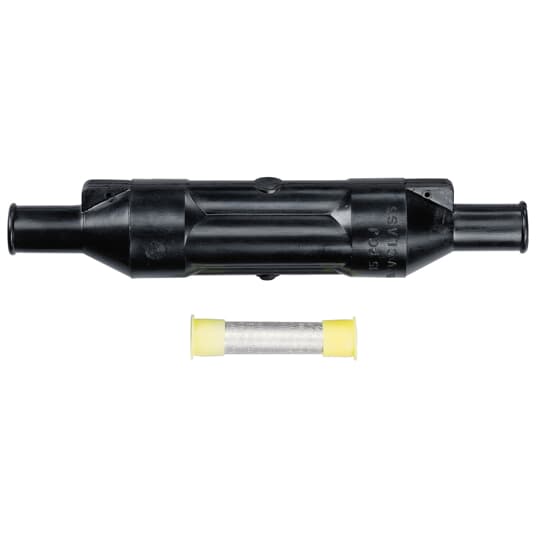

ABB - Installation Products Power Cable Joint, 35 Kv Pcj1
ABB - Installation Products #:35PCJ1M1280-1270
SKU: ABBI35PCJ1M1280-1270
UPC: 783786800216
SKU: ABBI35PCJ1M1280-1270
UPC: 783786800216
Your Price: $424.98 / EA
ABB - Installation Products Power Cable Joint, 35 Kv Pcj1
Ask about this product
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
35kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Conductor. Conductor Size AWG Stranded 250. Aluminum Conductor. Conductor Size AWG Stranded 4/0 /Solid 250.
| Number Of Conductors: | 2 |
| Color: | Black |
| Application: | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Size: | 14-3/8 inch long |
| Special Features: | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to e |
| Standard: | IEEE Standard 404 |
| Type: | Power Cable Joint |
| Voltage Rating: | 35 kV |
| Conductor Range: | 4/0 STR AWG , 250 kcmil |
