NSi Industries POLARIS Stack Ins Multi-Tap 500 10 Port
NSi Industries #:IPLDS500-10
SKU: NSIIIPLDS500-10
UPC: 662381951717
SKU: NSIIIPLDS500-10
UPC: 662381951717
Your Price: $337.93 / EA
NSi Industries POLARIS Stack Ins Multi-Tap 500 10 Port
Ask about this product POLARIS Stack Ins Multi-Tap 500 10 Port Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

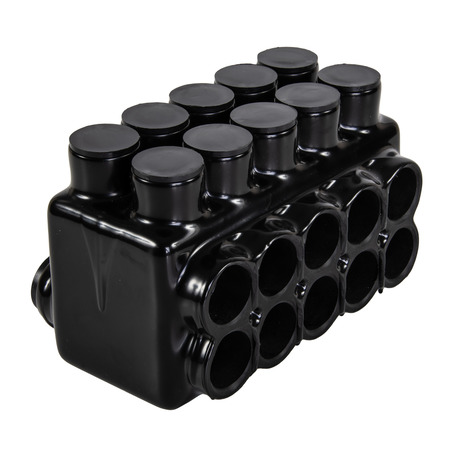

The Polaris IPLDS500-10 Multi-Tap Dual-Sided Entry Connector features 10 ports sized for 500 MCM - 4 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. One side features stacked ports, with double-sided ports on the bottom for greater flexibility. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of tight-fitting splicing applications, including installation in small wire ways or panels.
| Aluminum Conductor Note: | Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables. Parallel Rated to provide safety and NEC compliance when installing parallel runs. No more than 4 input parallel wires.++ For more ampacity -requires installation according to NEMA guidelines - staggering the inputs & outputs & Deratting for more than 3 conductors in a raceway |
| Copper Conductor Max: | 1612 Amp |
| Voltage Rating: | 600 V |
| Color: | Black |
| Application: | Wire Termination |
| Environmental Conditions: | 90 C |
| Material: | Aluminum |
| Number Of Poles: | 1 |
| Temperature Rating: | 90 C |
| Standard: | UL 486A/B |
| Wire Type: | Class B & C |
| Number Of Conductors: | 10 |
| Special Features: | (10) 500 MCM-4 AWG - Dual Rated |
| Wire Size: | 500 MCM-4 AWG |
| Finish: | Plastisol Insulated |
| Type: | Stacked Double Sided Entry |
| Size: | Lequals6.380 - Wequals4.710 - Hequals4.280 IN |
