Leviton N/F MECH INTLK ENC 4PO5WI3PHY30A120/208V
Leviton #:530MI9W
SKU: LEVI530MI9W
UPC: 078477125809
SKU: LEVI530MI9W
UPC: 078477125809
Edwards List Price: $1,486.29
Your Price: $1,248.98 / EA
Add to List
Buying in Bulk?
Ask about this product N/F MECH INTLK ENC 4PO5WI3PHY30A120/208V
Specification Sheet
Weight:0 lbs
Country of Origin: CZ
Lead Time: 0 Days
Your Price: $1,248.98 / EA
Save 15%
Leviton N/F MECH INTLK ENC 4PO5WI3PHY30A120/208V
Ask about this product N/F MECH INTLK ENC 4PO5WI3PHY30A120/208V
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

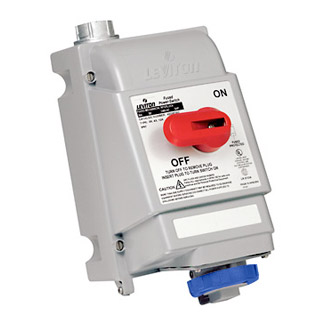

30 Amp, 120/208 Volt 3PY, IEC 309-1 & 309-2, 4P, 5W, Mechanical Interlock North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight, Non-Fused - Blue
| Material: | Valox 357 |
| Replacement Parts Material: | Valox 357 (Cover with Arm);Valox 357 (Locking Ring);Nickel Plated Brass (Cover Eyelet);Chloroprene (Gasket);Valox 357 (Handle);Zinc-Coated Steel (Actuator);Valox 357 (Locking Mechanism);Nylon (Contact Carrier);Brass (Phase and Ground Sleeves);Brass (Groun |
| Horsepower: | 10 HP |
| Color: | Blue |
| Number Of Wires: | 5 |
| Number Of Poles: | 4 |
| Amperage Rating: | 30 AMP |
| Actuator: | Cam Lever |
| Application: | Industrial |
| Environmental Conditions: | Flammability (0.6 V-0) |
| Operating Temperature: | -40 to +60 DEG C |
| Size: | 8.78 W x 12.52 H x 8.29 D IN |
| Standard: | UL Listed (231, 1686);UL Listed (508 Non-Fused);UL Listed (98 Fused);CSA Certified (C22.2);CE Marking (Per low voltage directives 73\23\EEC);93\68\EEC;IEC Rating (60309-1 and 60309-2) |
| Type: | Pin & Sleeve Non Fused Mechanical Interlock |
| Contact Rating: | 120/208 V;30 AMP |
| Voltage Rating: | 120/208 VAC |
