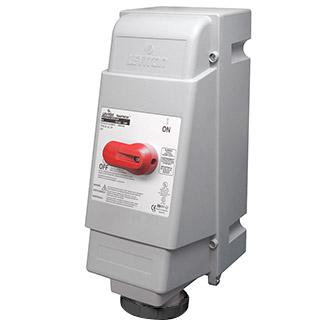

Leviton N/F MECH INTERLOCK ENC 3PO4WI3PH 60A600V
Leviton #:460MI5W
SKU: LEVI460MI5W
UPC: 078477125915
SKU: LEVI460MI5W
UPC: 078477125915
Edwards List Price: $1,512.14
Your Price: $1,488.75 / EA
Add to List
Buying in Bulk?
Ask about this product N/F MECH INTERLOCK ENC 3PO4WI3PH 60A600V
Specification Sheet
Weight:0 lbs
Country of Origin: CZ
Lead Time: 0 Days
Your Price: $1,488.75 / EA
Save 1%
Leviton N/F MECH INTERLOCK ENC 3PO4WI3PH 60A600V
Ask about this product N/F MECH INTERLOCK ENC 3PO4WI3PH 60A600V
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
60 Amp, 600 Volt 3-Phase, IEC 309-1 & 309-2, 3P, 4W, Mechanical Interlock North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight, Non-Fused - Black
| Material: | Valox 357 |
| Number Of Wires: | 4 |
| Replacement Parts Material: | Valox 357 (Cover with Arm);Valox 357 (Locking Ring);Nickel Plated Brass (Cover Eyelet);Chloroprene (Gasket);Valox 357 (Handle);Zinc-Coated Steel (Actuator);Valox 357 (Locking Mechanism);Nylon (Contact Carrier);Brass (Phase and Ground Sleeves);Brass (Groun |
| Color: | Black |
| Horsepower: | 40 HP |
| Number Of Poles: | 3 |
| Amperage Rating: | 60 AMP |
| Voltage Rating: | 600 VAC |
| Actuator: | Cam Lever |
| Application: | Industrial |
| Environmental Conditions: | Flammability (0.6 V-0) |
| Operating Temperature: | -40 to +60 DEG C |
| Standard: | UL Listed (231, 1686);UL Listed (508 Non-Fused);UL Listed (98 Fused);CSA Certified (C22.2);CE Marking (Per low voltage directives 73\23\EEC);93\68\EEC;IEC Rating (60309-1 and 60309-2) |
| Type: | Pin & Sleeve Non Fused Mechanical Interlock |
| Size: | 9.37 W x 18.54 H x 9.80 D IN |
| Contact Rating: | 600 V;60 AMP |
