Edwards List Price: $8.74
Your Price: $6.52 / EA
Add to List
Buying in Bulk?
Ask about this product LEV-LOK MODULE W/WAGOS
Specification Sheet
Weight:0 lbs
Country of Origin: MX
Lead Time: 0 Days
Your Price: $6.52 / EA
Save 25%
Leviton LEV-LOK MODULE W/WAGOS
Ask about this product LEV-LOK MODULE W/WAGOS
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

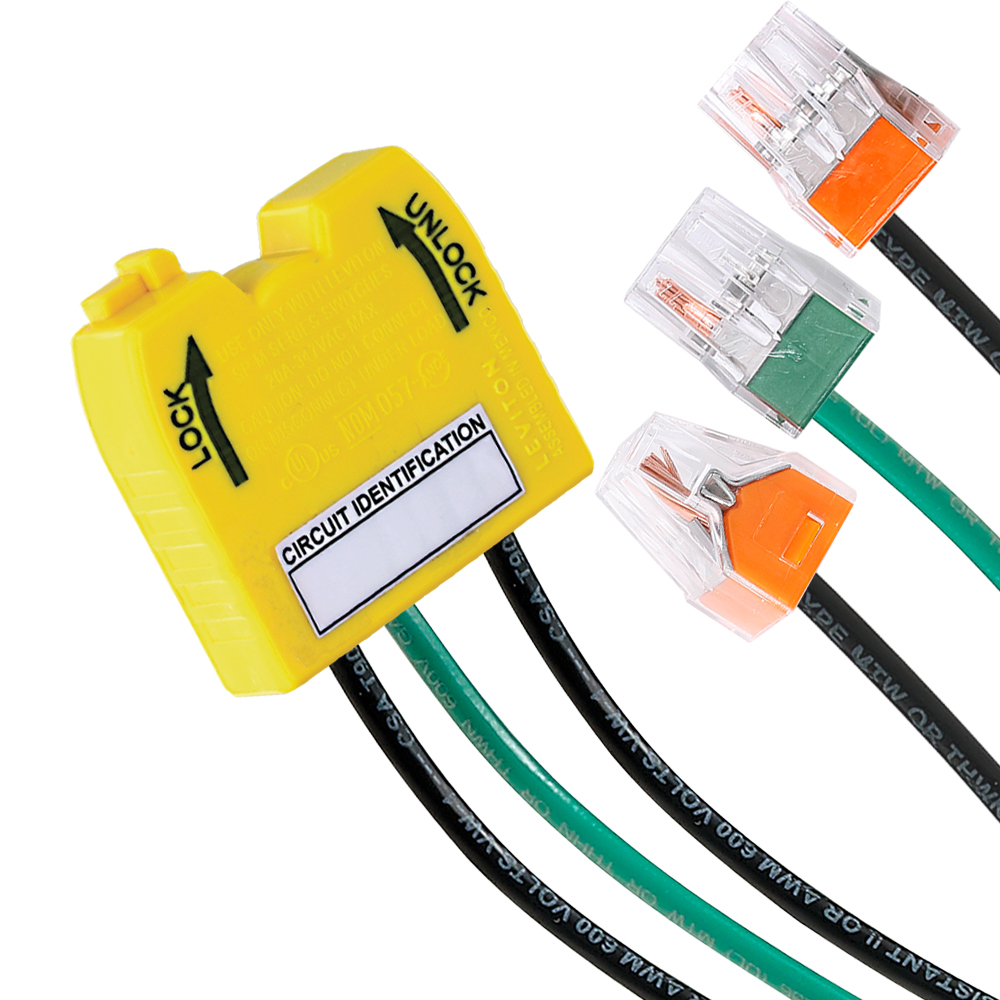

20 Amp, 347 Volt Max, 90 Degree Angled Modular Wire Lead Assembly, with 6" Stranded #12 THHN 90C Wire Leads, Single-Pole 3-Wire, 4 Port Push Wire WAGO Conectors Attached To All 3 Leads, Yellow
| Operating Temperature: | -40 to +65 DEG C |
| Color: | Yellow |
| Size: | 1.55 H x 1.50 W x 0.40 D IN |
| Voltage Rating: | 347 VAC |
| Number of Poles: | 1 |
| Amperage Rating: | 20 AMP |
| Application: | Commercial |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Action: | SP |
| Connection: | Wire Lead |
| Standard: | NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);cULus (File E7458);RoHS Compliant |
| Type: | Wiring Module |
