Edwards List Price: $31.14
Your Price: $19.95 / EA
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product LA COMBI SW SP/PILOT LITE 15A120VAC
Specification Sheet
Your Price: $19.95 / EA
Save 35%
Leviton LA COMBI SW SP/PILOT LITE 15A120VAC
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product LA COMBI SW SP/PILOT LITE 15A120VAC
Specification Sheet
Detailed Description

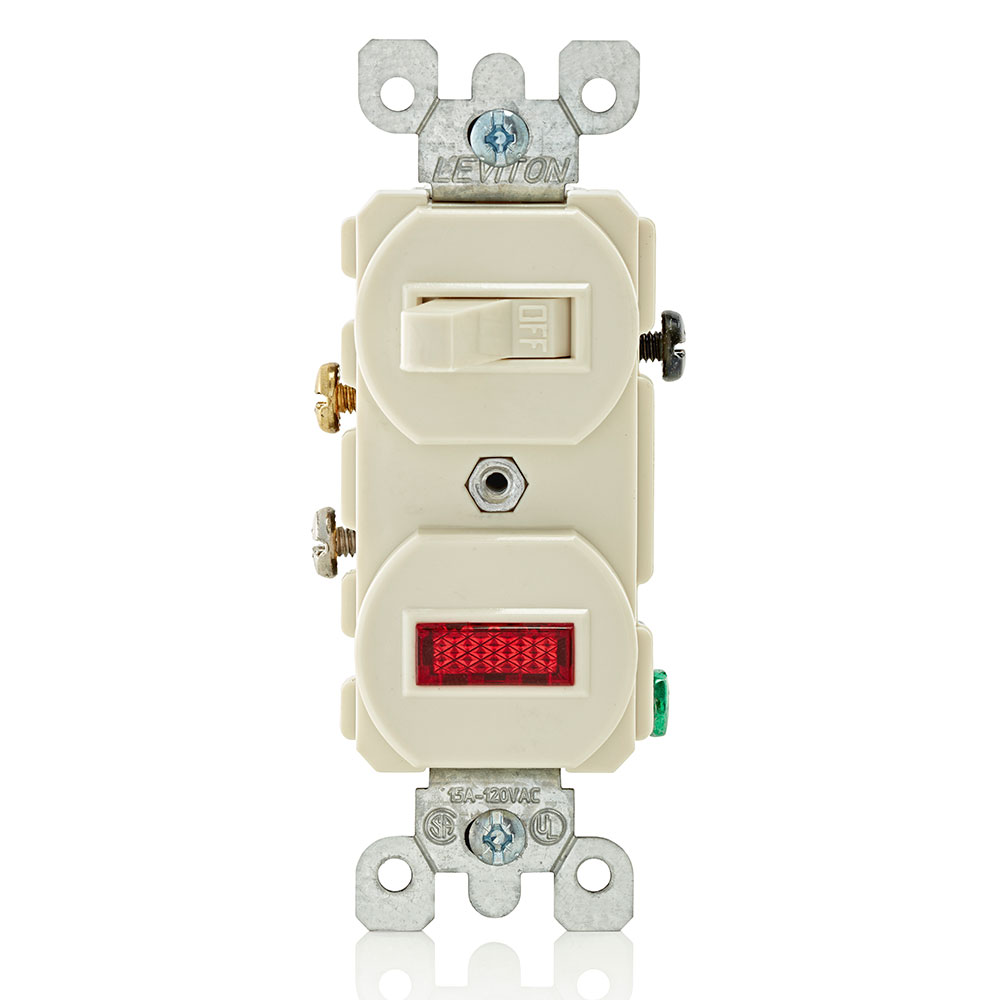

15 Amp, 120 Volt, Duplex Style Single-Pole, Neon Pilot AC Combination Switch, Commercial Grade, Light Almond
| Material: | Thermoplastic |
| Replacement Parts Material: | Steel (Strap);Thermoplastic (Actuator) |
| Nema Rating: | 5-15R |
| Application: | Commercial |
| Connection: | Side Wired |
| Environmental Conditions: | Flammability (Rated UL 94 V-2) |
| Mounting: | Wallplate |
| Number Of Poles: | 1 |
| Operating Temperature: | -40 to +120 DEG C |
| Standard: | UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057) |
| Voltage Rating: | 120 VAC (Switch);125 V (Receptacle) |
| Amperage Rating: | 15 AMP |
| Contact Rating: | 120 VAC (Switch);125 V (Receptacle);15 AMP |
| Actuator: | Toggle |
| Size: | 4.20 H x 1.62 W x 16 D IN |
| Special Features: | Ac Quiet Switches have Silver-Cadmium Oxide Contacts and Receptacles have Double -wire Contacts for Maximum Conductivity, Terminal Screw Accept Up to No 12 AWG Copper or Copper-Clad Wire, Fits Standard Wallboxes, Break-Off Tabs on Devices with Switches Pe |
| Type: | Duplex Style |
| Color: | Light Almond |
