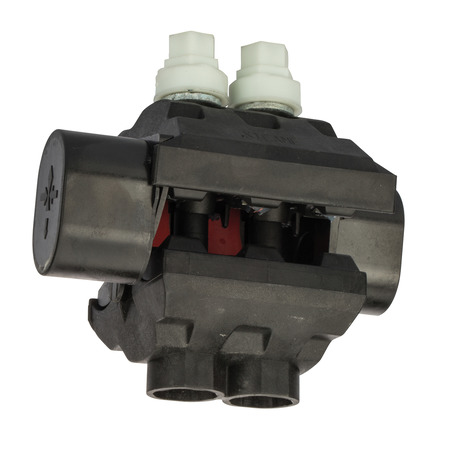

NSi Industries Insulation Piercing Connector 750-500 MC
NSi Industries #:IPCS7550
SKU: NSIIIPCS7550
UPC: 662381082701
SKU: NSIIIPCS7550
UPC: 662381082701
Your Price: $193.63 / EA
NSi Industries Insulation Piercing Connector 750-500 MC
Ask about this product Insulation Piercing Connector 750-500 MC Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Insulation Piercing Connector 750 - 250 MCM Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
| Warranty: | 1 Year |
| Environmental Conditions: | 90 C |
| Temperature Rating: | 90 C |
| Voltage Rating: | 600 V |
| Application: | NSI |
| Color: | Black |
| Finish: | Thermal Plastic |
| Material: | Fiber Reinforced Thermal Plastic |
| Mounting: | Clamp |
| Special Features: | No need to strip wire - No tape or cover needed - Exclusive turbo spacer keeps tap side open while main conductor is being tightened |
| Standard: | UL486B Listed |
| Type: | Insulation Piercing Connectors |
| Amperage Rating: | 700 (CU Amps) - 545 (AL Amps) |
| Conductor Size: | 750-250 MCM (Main) |
| Size: | Lequals4.30 - Wequals3.30 - Hequals4.70 |
| Tap Size: | 500-250 MCM |
