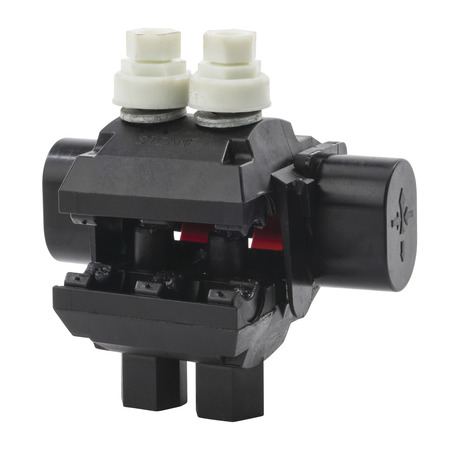

NSi Industries Insulation Piercing Connector 500-350 MC
NSi Industries #:IPCS5035
SKU: NSIIIPCS5035
UPC: 662381082695
SKU: NSIIIPCS5035
UPC: 662381082695
Edwards List Price: $127.01
Your Price: $127.01 / EA
Add to List
Buying in Bulk?
Ask about this product Insulation Piercing Connector 500-350 MC Weight:0 lbs
Country of Origin: FRA
Lead Time: 0 Days
Your Price: $127.01 / EA
Save 0%
NSi Industries Insulation Piercing Connector 500-350 MC
Ask about this product Insulation Piercing Connector 500-350 MC Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Insulation Piercing Connector 500 MCM - 4/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
| Warranty: | 1 Year |
| Environmental Conditions: | 90 C |
| Temperature Rating: | 90 C |
| Voltage Rating: | 600 V |
| Application: | NSI |
| Color: | Black |
| Finish: | Thermal Plastic |
| Material: | Fiber Reinforced Thermal Plastic |
| Mounting: | Clamp |
| Special Features: | No need to strip wire - No tape or cover needed - Exclusive turbo spacer keeps tap side open while main conductor is being tightened |
| Standard: | UL486B Listed |
| Type: | Insulation Piercing Connectors |
| Amperage Rating: | 570 (CU Amps) - 445 (AL Amps) |
| Conductor Size: | 500 MCM-4/0 AWG (Main) |
| Size: | Lequals3.90 - Wequals3.00 - Hequals4.50 |
| Tap Size: | 350 MCM-1/0 AWG |
