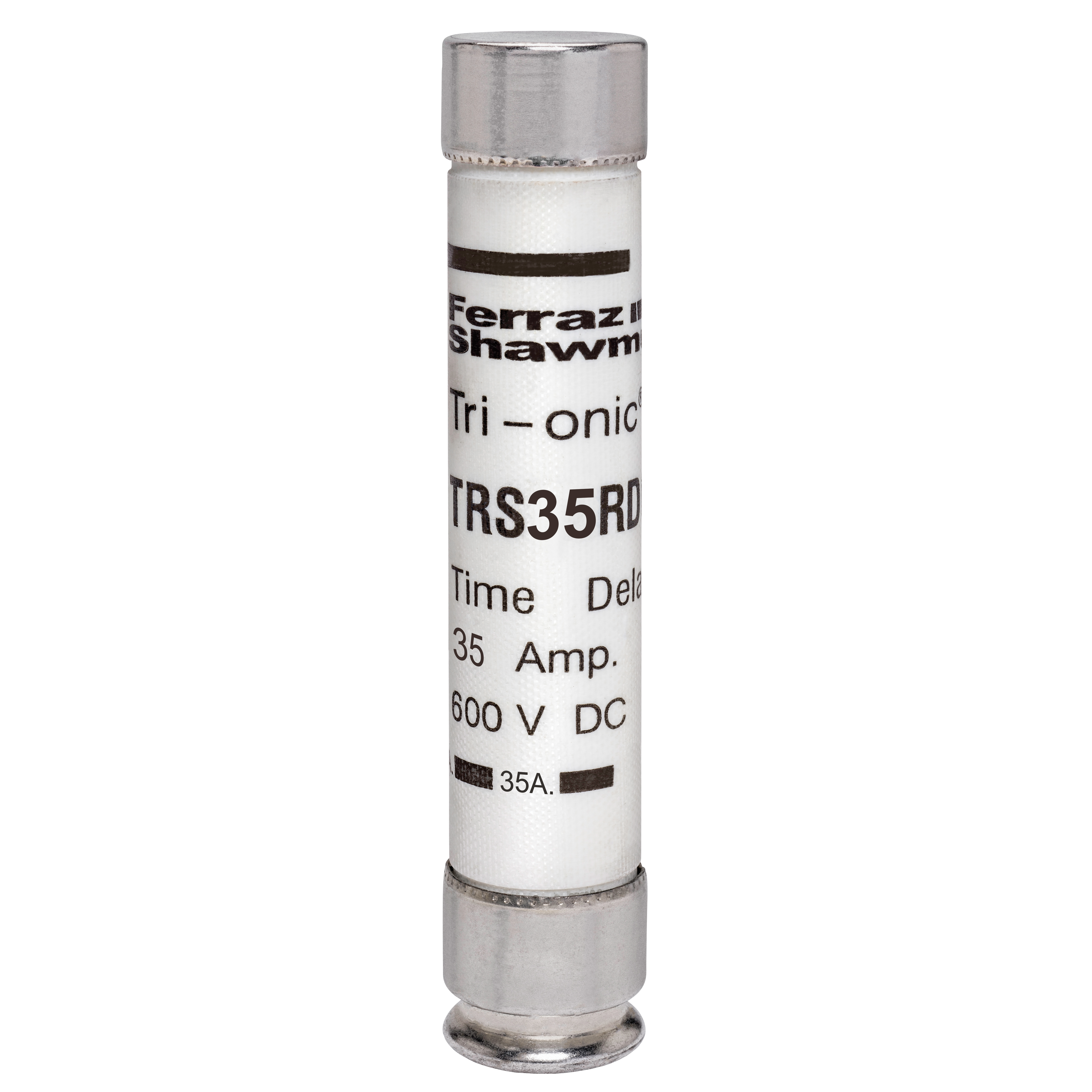

Mersen Fuse TRS-RDC - Class RK5 - Time-Delay 600VDC 35A Ferrule
Mersen #:TRS35RDC
SKU: MERSTRS35RDC
UPC: 782001740351
SKU: MERSTRS35RDC
UPC: 782001740351
Your Price: $24.80 / EA
Mersen Fuse TRS-RDC - Class RK5 - Time-Delay 600VDC 35A Ferrule
Ask about this product Fuse TRS-RDC - Class RK5 - Time-Delay 60
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Fuse TRS-RDC - Class RK5 - Time-Delay 600VDC 35A Ferrule Tri-Onic
| Body Material: | GMG |
| Connection Material: | Tin-Plated Copper |
| Application: | Mine circuits Trailing cables Pump motors Rail heaters |
| Class: | Class RK5 |
| Connection: | Ferrule |
| Interrupt Rating: | 20 kA |
| Mounting: | Clip |
| Special Features: | DC rated for mine duty and other long time-constant applications Time-delay for motor start-ups and high inrush loads without nuisance opening Rugged glass melamine body for superior reliability in harsh environments |
| Standard: | MSHA approval no. 28-26-0 |
| Type: | Class RK5 |
| Amperage Rating: | 35 A |
| Size: | 5.5 x 1.06 in |
| Voltage Rating: | 600 VDC |
