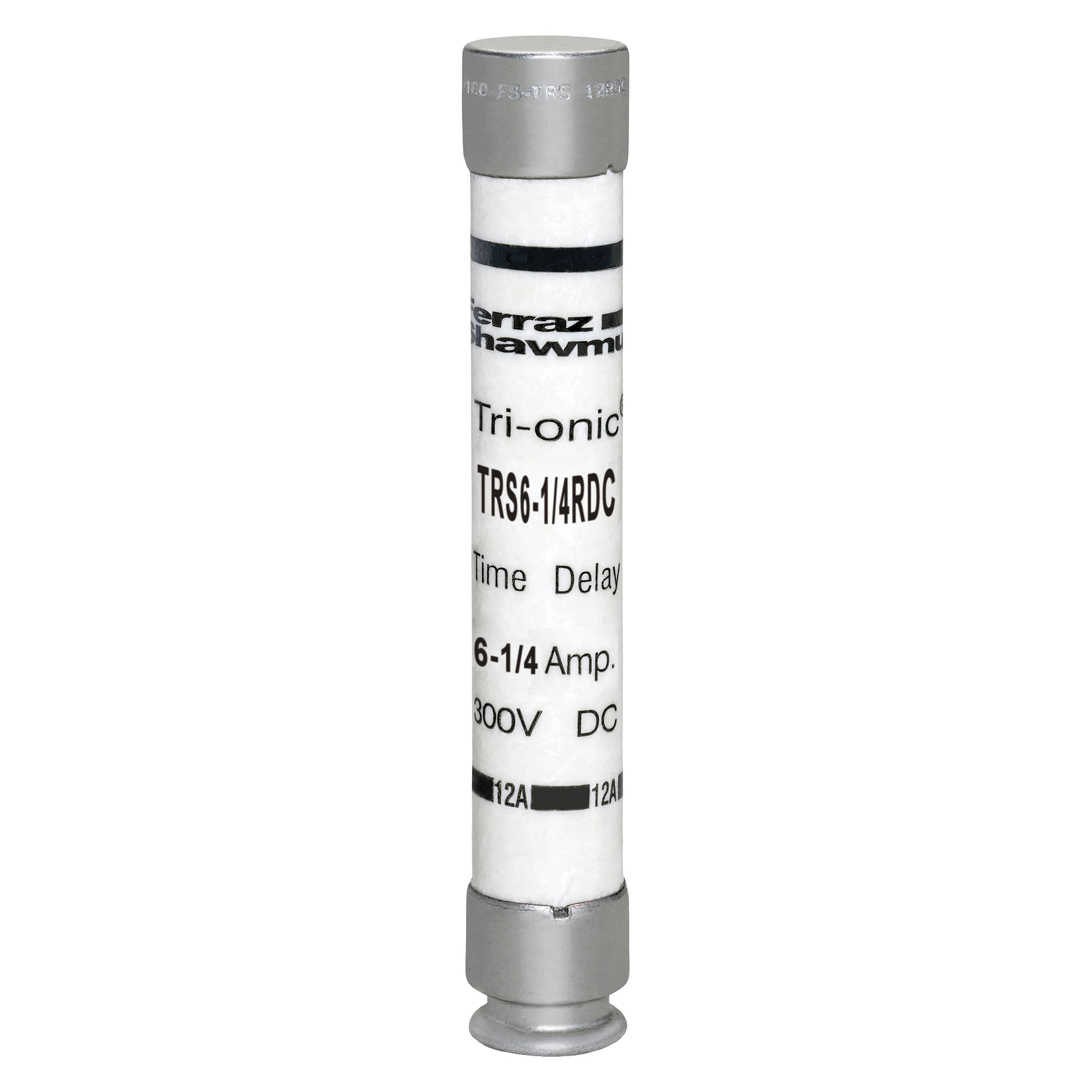

Mersen Fuse TRS-RDC - Class RK5 - Time-Delay 300VDC 6.25A Ferrule
Mersen #:TRS6-1/4RDC
SKU: MERSTRS6-1/4RDC
UPC: 782001229399
SKU: MERSTRS6-1/4RDC
UPC: 782001229399
Your Price: $17.11 / EA
Mersen Fuse TRS-RDC - Class RK5 - Time-Delay 300VDC 6.25A Ferrule
Ask about this product Fuse TRS-RDC - Class RK5 - Time-Delay 30
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Fuse TRS-RDC - Class RK5 - Time-Delay 300VDC 6.25A Ferrule Tri-Onic
| Body Material: | GMG |
| Connection Material: | Tin-Plated Copper |
| Application: | Mine circuits Trailing cables Pump motors Rail heaters |
| Class: | Class RK5 |
| Connection: | Ferrule |
| Interrupt Rating: | 20 kA |
| Mounting: | Clip |
| Size: | 5 x 0.81 in |
| Special Features: | DC rated for mine duty and other long time-constant applications Time-delay for motor start-ups and high inrush loads without nuisance opening Rugged glass melamine body for superior reliability in harsh environments |
| Standard: | MSHA approval no. 28-26-0 |
| Type: | Class RK5 |
| Voltage Rating: | 300 VDC |
| Amperage Rating: | 6.25 A |
