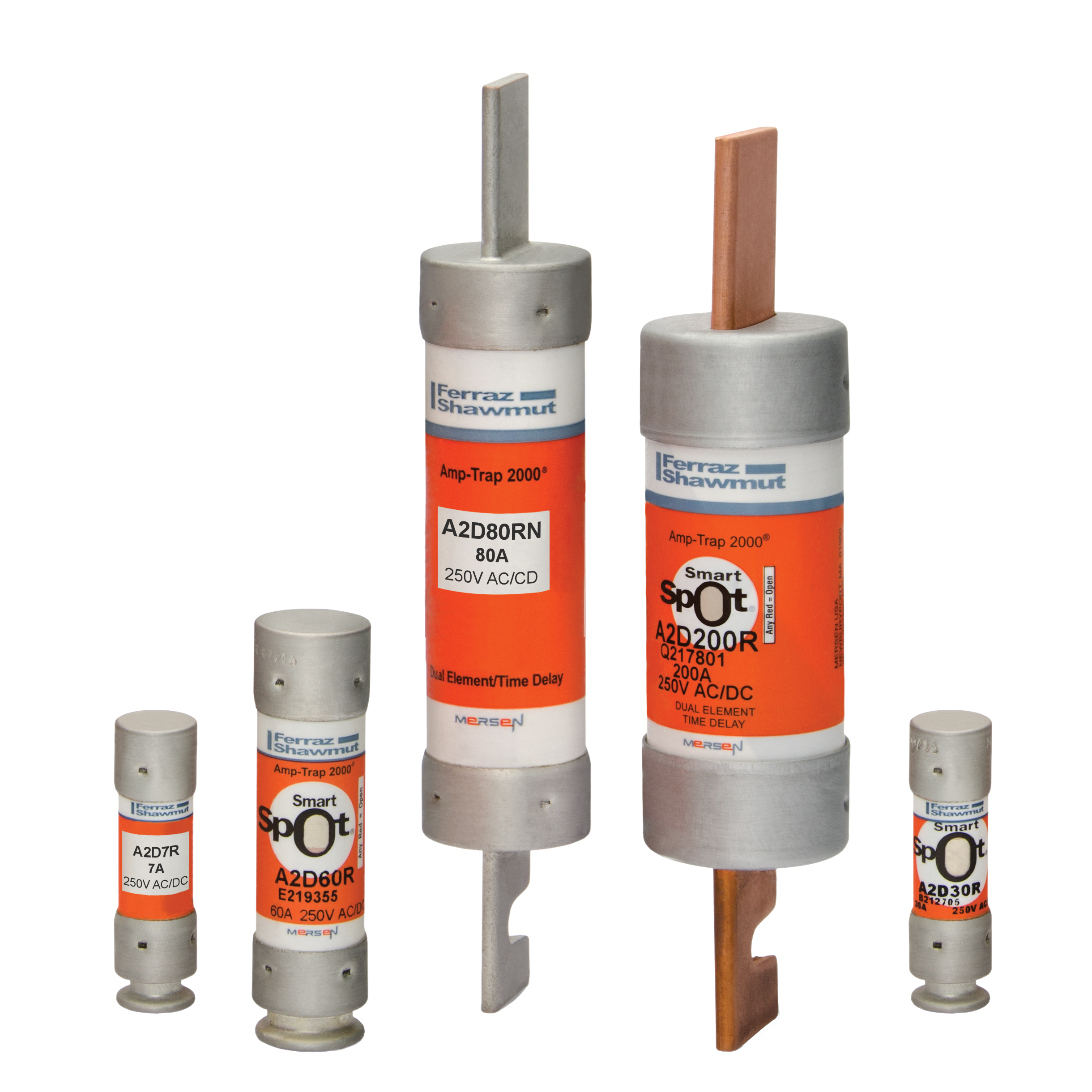

Mersen Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 10A Ferrule SmartSpot
Mersen #:A2D10R
SKU: MERSA2D10R
UPC: 782001990800
SKU: MERSA2D10R
UPC: 782001990800
Your Price: $12.95 / EA
Mersen Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 10A Ferrule SmartSpot
Ask about this product Fuse A2D-R - Class RK1 - Time-Delay 250V
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 10A Ferrule SmartSpot Amp-Trap 2000
| Connection Material: | Tin-Plated Copper |
| Body Material: | PolyTube |
| AC Voltage Rating: | 250 V |
| Interrupt Rating: | 200 kA |
| Connection: | Ferrule |
| Mounting: | Clip |
| Amperage Rating: | 10 A |
| Special Features: | Non-indicating or Solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush currents without nuisance opening 600VAC & 600VDC dual rated 300kA interrupting rating - self-certified, UL witnessed tests Extremely |
| Standard: | UL listed to standard 248-12 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.12 |
| Type: | Class RK1 |
| Application: | Motors Safety switches Transformers Branch circuit protection Disconnects Control panels All general-purpose circuits |
| Class: | Class RK1 |
| Voltage Rating: | 250 VAC |
| Size: | 2 x 0.56 in |
| Type Of Indicators: | SmartSpot |
