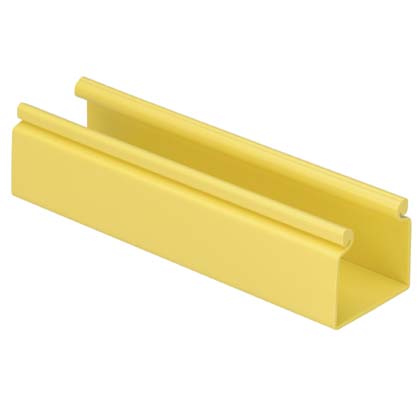

Panduit FIBERRUNNER HINGED CHANNEL
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product FIBERRUNNER HINGED CHANNEL
Specification Sheet
Detailed Description
Used to carry the cables horizontally throughout the system. Accepts hinged cover HC2YL2. Use QuikLock Coupler FBC2X2YL to attach channel and/or fittings.
| Material: | PVC |
| Color: | Yellow |
| Type: | Fiber Routing Channel |
| Width: | 2.17 In. |
| Standard: | UL Listed to 2024A,GR-63-CORE,CE Compliant |
| Application: | (1)The Fiber-Runner 2X2 Routing System is System of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling.(2) It is Suited for Data Center Applications where Cable is Routed from Distribution Area |
| Size: | NA |
| Connection: | NA |
| Slot Style: | 2 x 2 FiberRunner Channel |
| Wire Size: | 1.6mm Fiber equals 655 2mm Fiber equals 419 3mm Fiber equals 186 5.2mm Fiber equals 62 6.35mm CAT6 equals 42 7.57mm CAT6A equals 29 |
| Depth: | 1.92 In. |
| Length: | 78.74 In. |
