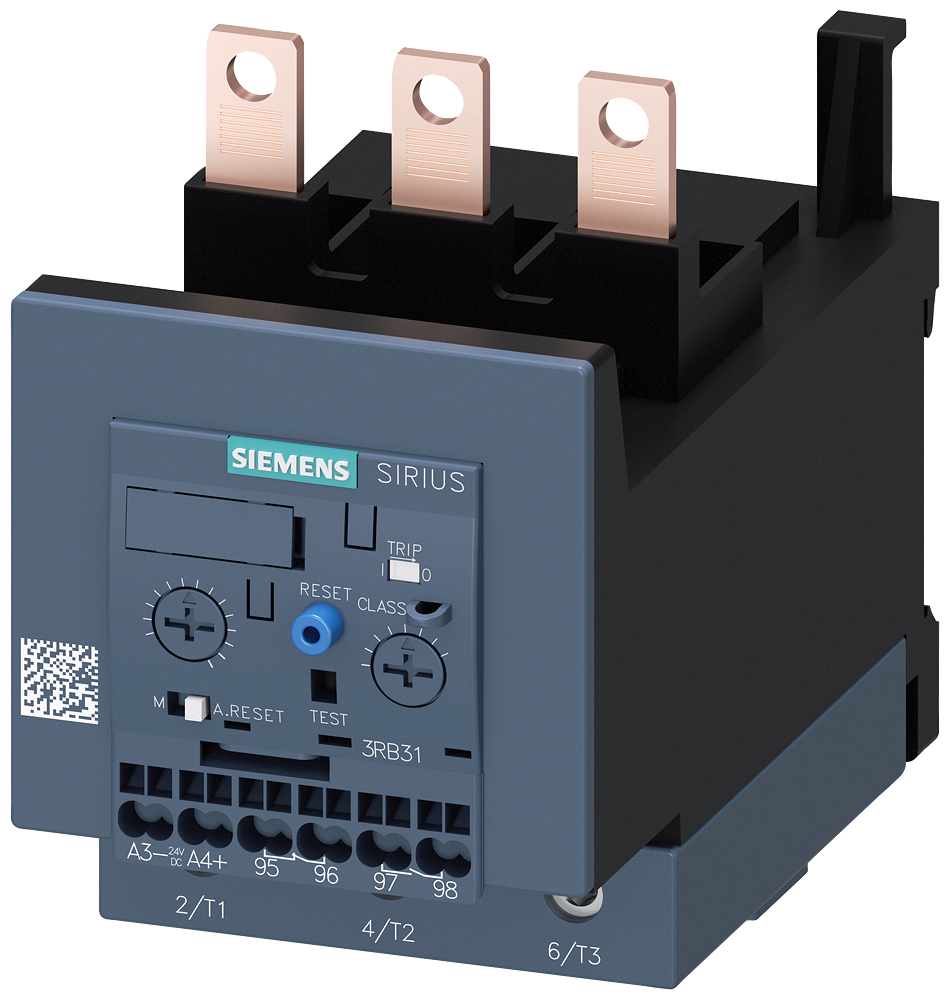

Siemens Industry ELECTRONIC OVERLOAD RELAY. 12.5...50 A
Siemens Industry #:3RB31434UD0
SKU: SIEM3RB31434UD0
UPC: 804766406607
SKU: SIEM3RB31434UD0
UPC: 804766406607
Edwards List Price: $721.00
Your Price: $646.02 / EA
Add to List
Buying in Bulk?
Ask about this product ELECTRONIC OVERLOAD RELAY. 12.5...50 A
Specification Sheet
Weight:0 lbs
Country of Origin: CZ
Lead Time: 11 Days
Your Price: $646.02 / EA
Save 10%
Siemens Industry ELECTRONIC OVERLOAD RELAY. 12.5...50 A
Ask about this product ELECTRONIC OVERLOAD RELAY. 12.5...50 A
Specification Sheet
Weight:
Country of Origin:
Lead Time: 11 Days
Detailed Description
OVERLOAD RELAY 12.5...50 A FOR MOTOR PROTECTION SIZE S3. CLASS 5E...30E F. MOUNTING ONTO CONTACTORS MAIN CIRCUIT SCREW TERMINAL AUX. CIRCUIT SPRING-T. TERM. MANUAL-AUTOMATIC RESET
| Operating current / of auxiliary contacts / at DC-13 / at 60 V: | 0.55 A |
| Ambient temperature / during storage / minimum: | -40 C |
| Ambient temperature / during transport / minimum: | -40 C |
| Installation altitude / at height above sea level / maximum: | 2000 m |
| Ambient temperature / during operation / maximum: | 60 C |
| Relative humidity / during operation / maximum: | 95 % |
| Ambient temperature / during storage / maximum: | 80 C |
| Ambient temperature / during transport / maximum: | 80 C |
| Ambient temperature / during operation / minimum: | -25 C |
| Relative humidity / during operation / minimum: | 10 % |
| Product function / removable terminal for auxiliary and control circuit: | Yes |
| Operating current / at AC-3 / at 400 V / Rated value: | 50.00 A |
| Insulation voltage / with degree of pollution 3 / rated value: | 1000 V |
| Surge voltage resistance / rated value: | 8 V |
| Power loss [W] / total / typical: | 0.9 W |
| Trip Class: | CLASS5E,10E,20Eand30Eadjustable |
| Depth: | 124 mm |
| Width: | 70 mm |
| Height: | 106 mm |
