Your Price: $347.54 / EA

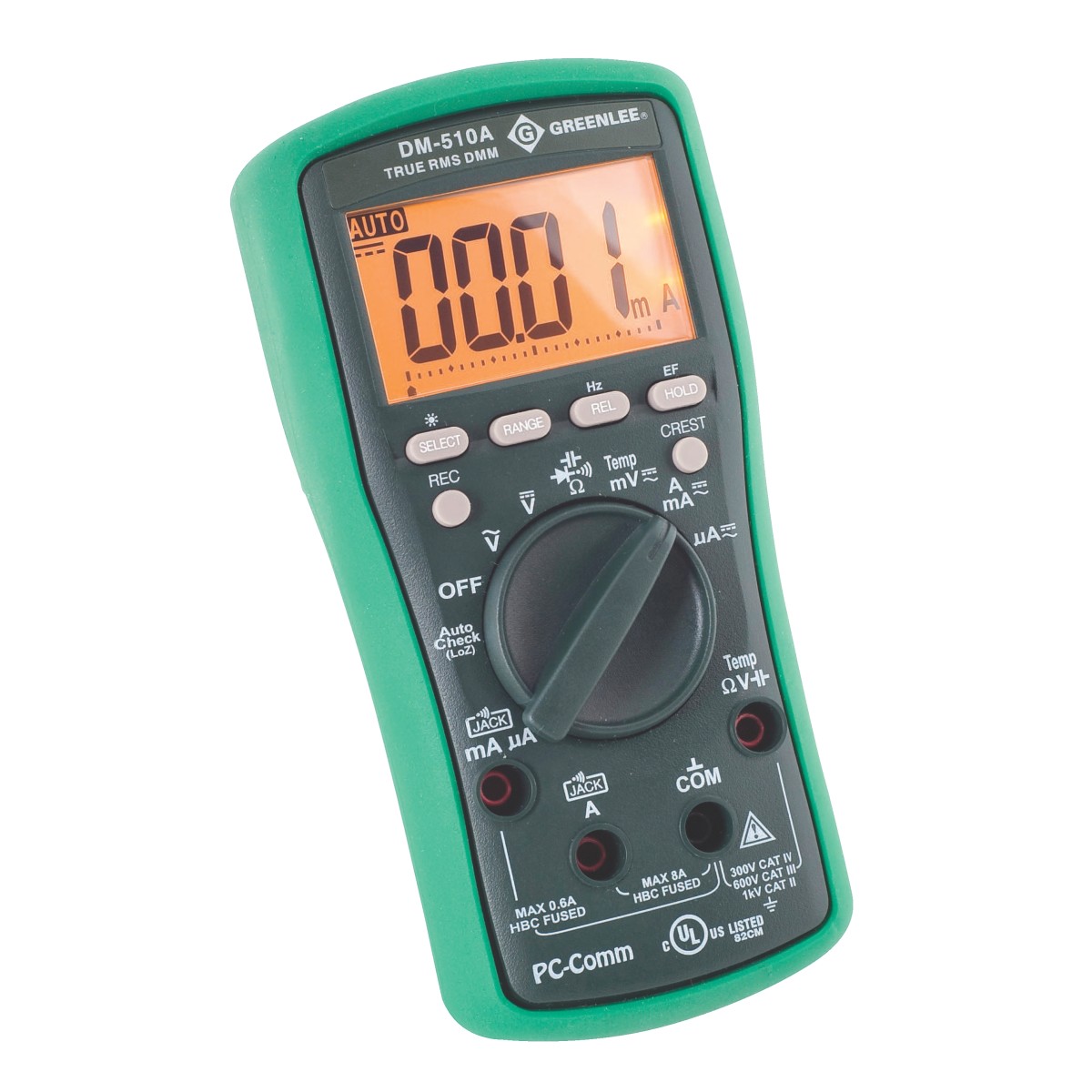

Greenlee DMM,TRMS,AC/DC(DM-510A)(CALIB)
Ask about this product DMM,TRMS,AC/DC(DM-510A)(CALIB)
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
ESM Series Digital Multimeters. Measures voltage, current, resistance and frequency. Tests continuity and diodes. Backlit LCD with 6,000 count display. Two voltage detection modes - non-contact or using a single test lead. BeepJack warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging. Lifetime Limited Warranty. Accessories included: (2)1.5V AAA batteries, bead temperature probe, 400 F/204 C max, test leads, protective boot. True RMS for no-compromise accuracy. Crest capture (peak hold)plus recording of max, min, max-min and average. Low impedance AutoCheck mode automatically selects AC or DC volts, resistance or continuity. Low impedance masks ghost voltage pickup. Measures capacitance. Measures temperature using a type K thermocouple. Includes Certificate of Calibration.
| Amperage Measurement: | 600, 6000μA; 60, 600mA; 6, 8A |
| Frequency Measurement: | 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave |
| Includes: | (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot |
| Measurement Category: | CAT IV 300 V, CAT III 600 V, CAT II 1000 V |
| Replacement Part: | TSG-3 Sure-Grip Test Leads |
| Voltage Measurement: | 60, 600 mV; 6, 60, 600, 1000V |
| Resistance Measurement: | 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ |
| Battery: | (2) 1.5 V AAA |
| Capacitance: | 60, 600 nF; 6, 60, 600, 3000μF |
| Display: | Backlit LCD With 6,000 Count |
| Temperature Rating: | K Type, -58 To 1832°F (-50 To 1000°C) |
| Type: | Professional Plant Digital |
| Standard: | CAT IV, CAT III, CAT II, C/ULUS Listed, CE Listed |
