Your Price: $452.75 / EA

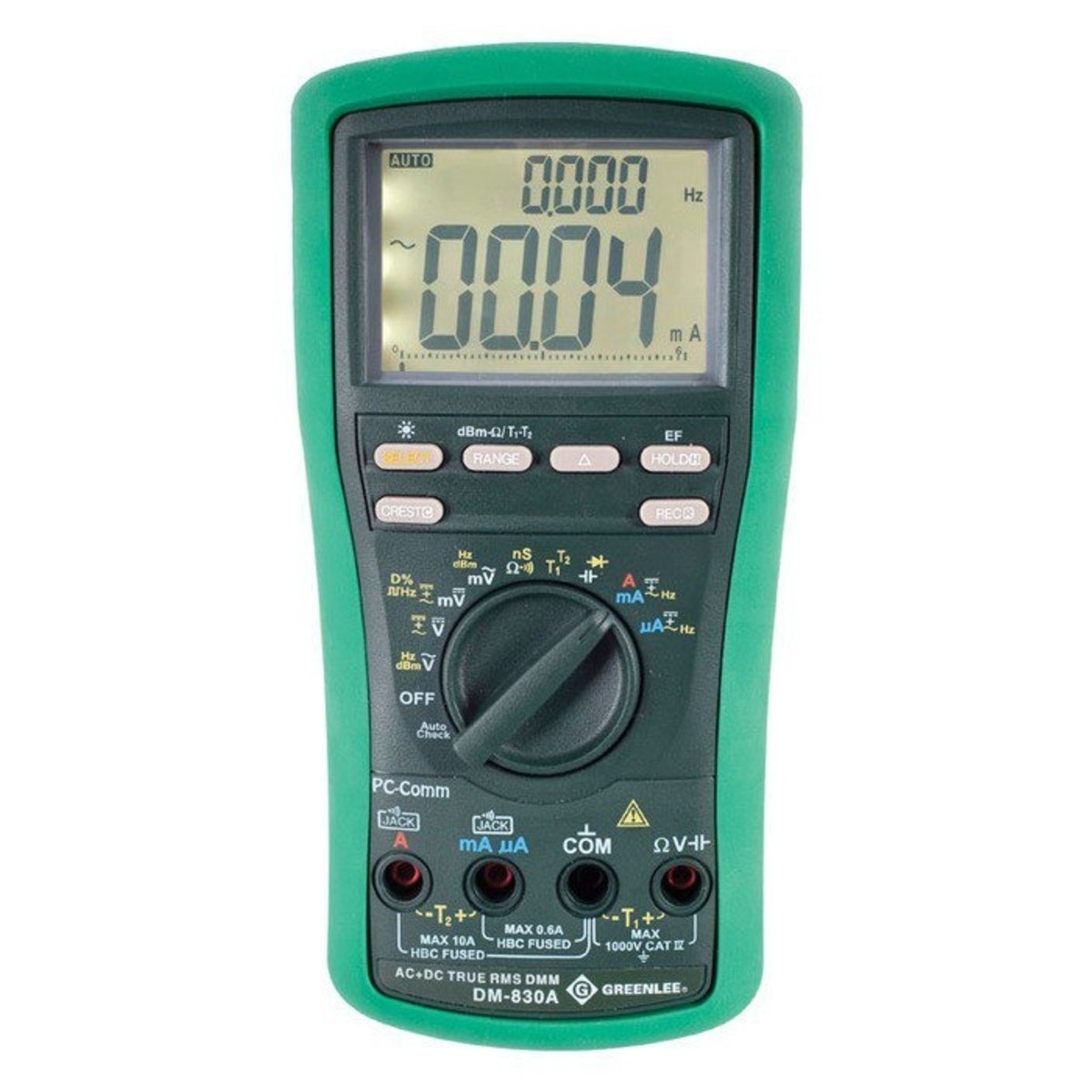

Greenlee DMM,TRMS AC+DC(DM-830A)(CALIB)
Ask about this product DMM,TRMS AC+DC(DM-830A)(CALIB)
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
ESM Series Digital Multimeters. AC+DC True RMS gives accurate readings on complex waveforms. Low impedanc3e AutoCheck mode - automatically selects AC or DC volts, resistance or continuity. Low impedance masks ghost voltage pickup. dBm function with 20 selectable reference impedance values. Crest capture (peak hold) plus recording of max, min, max-min and average. Two voltage detections modes: Non-contact or using a single test lead. Two temperature measurements using type K thermocouples. Conductance measurement. Lifetime limited warranty. Accessories included: (1)9V battery, bead temperature probe, test leads, protective boot, carrying case. Includes Certificate of Calibration.
| Resistance Measurement: | 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ |
| Amperage Measurement: | 600, 6000μA; 60, 600mA; 6, 10A |
| Conductance: | 99.99 nS |
| Frequency Measurement: | 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave |
| Includes: | (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400°F/204°C Max), Test Leads, Protective Boot, Carrying Case |
| Measurement Category: | CAT IV, 1000 V |
| Replacement Part: | TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A) |
| Voltage Measurement: | 60, 600 mV; 9.999, 99.99, 999.9 V |
| Temperature Rating: | K Type, -58 To 1832°F (-50 To 1000°C) |
| Type: | Digital |
| Battery: | (1) 9 V |
| Capacitance: | 60, 600nF; 6, 60, 600μF; 6, 25 mF |
| Display: | Backlit LCD With Dual 10,000 Count |
| Standard: | CAT IV, C/UL US Listed, TRUE RMS, CE Listed |
