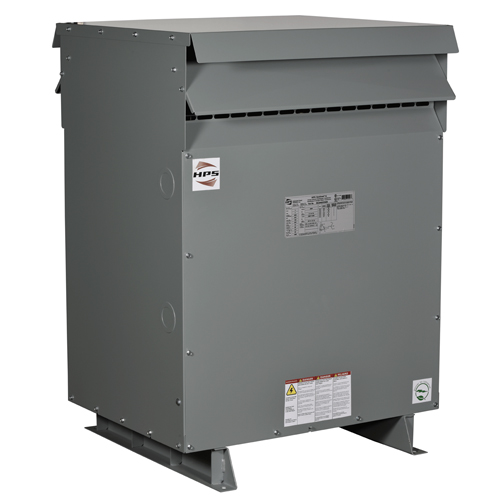

Hammond Power Solutions D16/NRC19 DIT 3PH 220kVA460D-230Y/133VAL
Hammond Power Solutions #:E3A0220JC
SKU: HAMME3A0220JC
UPC: 803423143336
SKU: HAMME3A0220JC
UPC: 803423143336
Your Price: $14,364.42 / EA
Hammond Power Solutions D16/NRC19 DIT 3PH 220kVA460D-230Y/133VAL
Ask about this product D16/NRC19 DIT 3PH 220kVA460D-230Y/133VAL
Specification Sheet
Warranty
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
600V Class Three Phased DOE2016 and NRCan 2019 Compliant Energy Efficient Drive Isolation Transformer 220kVA 460D-230Y/133 V AL 60Hz 3R
| Frequency Rating: | 60 HZ |
| Application: | Variable Speed Drives. |
| Efficiency: | NRCan 2018 Energy Efficient |
| Insulation Class: | 220 Deg C Class |
| NEMA Frame Size: | Type 3R |
| Number Of Phases: | 3 |
| Primary Voltage: | 460 V |
| Secondary Voltage: | 230Y/133 V |
| Special Features: | Meets NRCan 2018 efficiencies and designed to meet rugged demands of both AC and DC variable speed drives and alos to provide the required voltage change. Comes standard in an outdoor enclosure and a thermal warning switch. |
| Standard: | CSA, UL |
| Mounting: | Floor Mount |
| Enclosure: | DH5-N3R - Indoor or Outdoor |
| Height: | 52 IN |
| KVA Rating: | 220 kVA |
| Length: | 34 IN |
