Your Price: $0.48 / EA
NSi Industries CU CMP Lug Stack 600 MCM
Ask about this product CU CMP Lug Stack 600 MCM Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

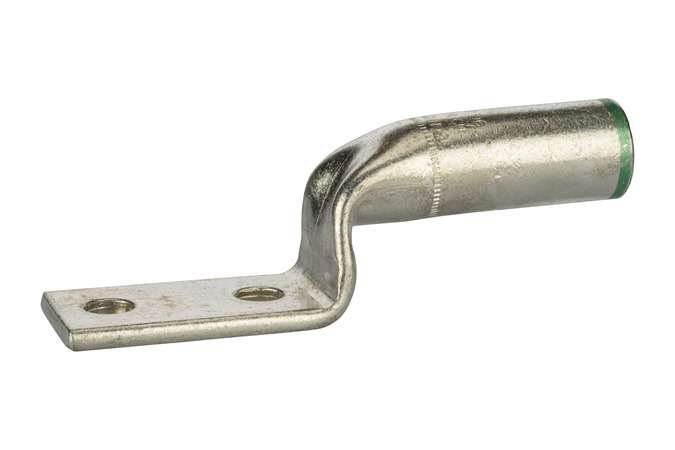

2 Hole Long Barrel Copper Stacked Compression Lug 600 MCM - 1/2" Bolt Long Barrel Copper Stacked Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are designed for use with the L-N Series. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference.
| Material: | Copper |
| Number of Holes: | 2 |
| Environmental Conditions: | 90 C |
| Voltage Rating: | 600 V |
| Application: | Terminate, Splice, Tap Power Connectors |
| Standard: | UL486A/B |
| Stud Size: | 1/2 IN |
| Mounting: | 1/2 Mounting Holes |
| Cable Size: | 600 MCM (STR) |
| Color: | Green |
| Special Features: | 600 MCM (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing |
| Type: | Long Barrel Stacking Lugs |
| Size: | Lequals6.82 - Wequals1.66 - ODequals1.19 - IDequals.930 |
