Greenlee COMBO 2SWITCHES 3WAY 15A120/277V BN
Ask about this product COMBO 2SWITCHES 3WAY 15A120/277V BN
Specification Sheet
Warranty
Weight:
Country of Origin:
Lead Time: 5 Days
Detailed Description

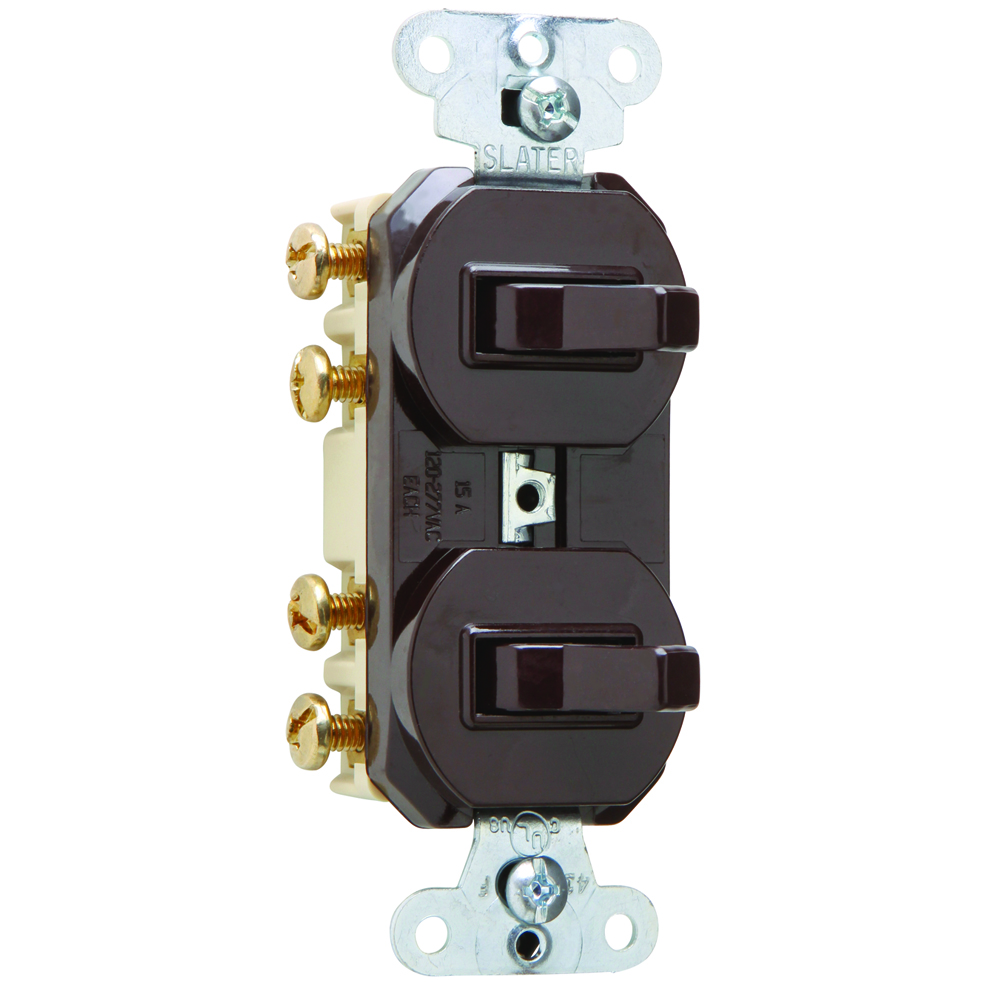

15 amps 120/277 volts, Double Three-way Combination Switch, Non-Grounding, Brown.
| _Basic Impulse Level (BIL): | Maximum Working Voltage: 277VAC |
| Contact Configuration: | N-O |
| Mounting: | Wall |
| Actuator: | Toggle |
| Application: | Residential/Commercial |
| Environmental Conditions: | Flammability: UL94 V2 |
| Operating Cycles: | 30000 |
| Operating Temperature: | Maximum continuous +60C, minimum -30C |
| Size: | 1.32 L x 0.94 W x 4.06 H In |
| Amperage Rating: | 15 |
| Contact Rating: | 15 Amp, 120/277 VAC |
| Standard: | UL20 |
| Action: | (2) 3W |
| Number of Poles: | 3-Way |
| Connection: | Side wire, non-grounding |
| Special Features: | Easily accessible break-off for separate or common feed. Side wire #12 and #14 AWG. Two devices fit into the space of one. |
