Your Price: $1,185.63 / EA

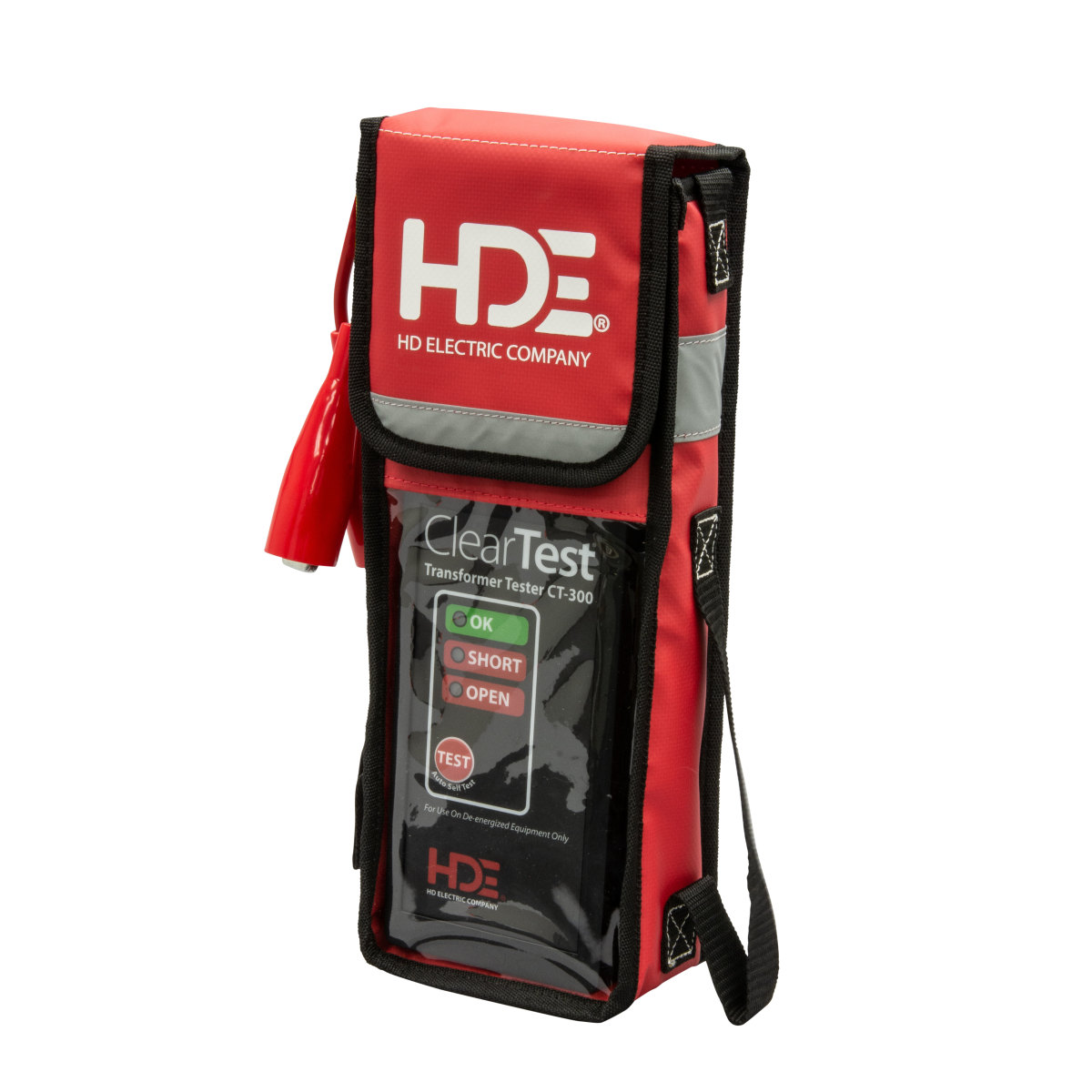

Greenlee CLEARTEST TRANSFORMER TESTER
Ask about this product CLEARTEST TRANSFORMER TESTER
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Quickly tests deenergized power distribution transformers. Briefly energizes the transformer and takes a snapshot of the condition by measuring the voltage, current and power factor of the test signal. Tests overhead, pad-mount and distribution transformers. Audible alarm confirms successful test. Improve SAIDI statistics by quickly testing and getting the transformer back in service. Auto self-test performed with every test. Compact, lightweight and easy-to-use
| Included: | CT-300 Tester, B-9 Carrying Bag |
| Enclosure: | ABS UL 94-HB |
| Temperature Range: | -20F to +140F (-29C to +60C) |
| Mounting: | Magnet |
| Application: | Transformer Testing |
| Model: | ClearTest |
| Output: | 500VDC or 5,000VDC nominal |
| Size: | 7.8"L x 4"W x 2.3"H (19.5 cm x 10.1 cm x 5.9 xm) |
| Special Features: | Quickly tests deenergized power distribution transformers; Briefly energizes the transformer and takes a snapshot of the condition by measuring the voltage, current and power factor of the test signal; Tests overhead, pad-mount and distribution transforme |
| Supply Current: | 1,000A on 500VDC range; 100A on 5,000VDC range; 2,000A max |
| Type: | Transformer Tester |
