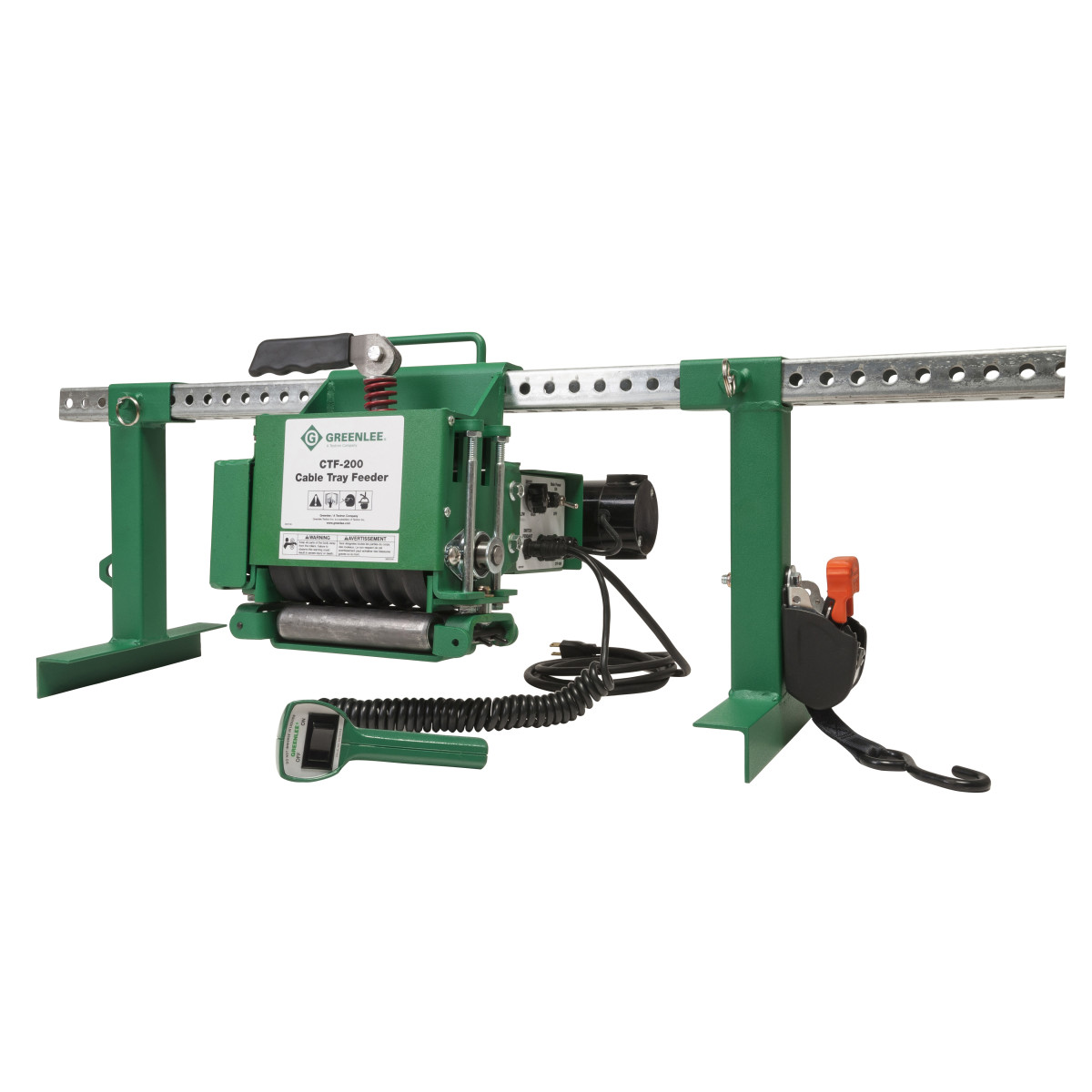

Greenlee CABLE TRAY FEEDER
Ask about this product CABLE TRAY FEEDER
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Feeds cable aiding up to 200 lbs (90.7 kg) of force. Force limiter preset to automatically stall on cable to prevent damage to the wire's insulation. Retained locking pins allow for quick adjustment of legs and feeder along mounting system while utilizing no loose pieces. Adjustable legs to fit onto tray width sizes of 18" (457.2 mm) to 36" (914.4 mm). Over-Tray mounting systems allows cable to be placed in tray without taking space up. Safely control the unit up to 8' (2.4 m) away with a pendant. Specifically designed drive roller to safely and evenly grab cable. Quick release system utilizes 360 swivel and no loose pieces to easily remove cable. Cam lever system offers a quick clamping mechanism once pulling grip passes through. Designed and assembled in USA.
| Cable Capacity: | Up to 2'' (50.8 mm) in outer diameter |
| Overall Height: | 14-1/4'' (362 mm) |
| Overall Length: | 42-3/4'' (1085.9 mm) |
| Pulling Force: | 200 lb (90 kg) |
| Roller Opening Size: | 0''- 2'' (0 mm - 50.8 mm) |
| Application: | Used to assist feeding cables along non basket-style cable trays. Designed to aid loads right before 90 degree bends, vertical rises and drops, and on straight runs. |
| Type: | Cable Feeder |
