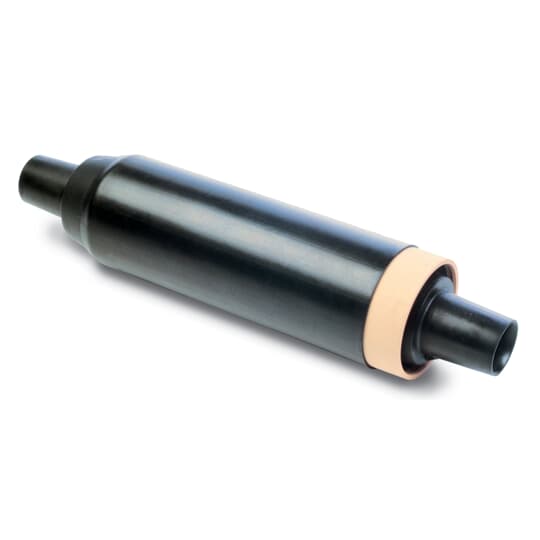

ABB - Installation Products 69kv Tcj Splice
ABB - Installation Products #:69TCJS44DP0597633
SKU: ABBI69TCJS44DP0597633
UPC: 075114141833
SKU: ABBI69TCJS44DP0597633
UPC: 075114141833
Your Price: $10,923.01 / EA
ABB - Installation Products 69kv Tcj Splice
Ask about this product
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
69 kv, Transmission Cable Joint, Housing Type - Shieldbreak, Housing Style 4, Housing Size 4, Connector type Copper/no connector required, Connector Code 00P - Not Included, Heatsink Size N - Not Required, Heatsink Bore - N - Not Required. Type Shield - N - Unknown, Metallic Screen Continuity Kit - B - 4/0 Bonding Cable 6 foot Quantity 2 with 4 Split Bolts, Armor Kit - not specified, Outer Jacket Restoration Kit - not specified
| Number Of Conductors: | 2 |
| Color: | Black |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Type: | Transmission Cable Joint - Shieldbreak |
| Special Features: | Each Cable Joint is produced exactly to design, producing a quality not possible with field molding equipment or tape. Electrically tested in the factory to ensure consistent quality. Molding is done in the factory, reducing on-site time - no penciling |
| Application: | For use on Solid Dielectric Cables - providing permanent, fully-shielded, fully submersible cable joints for direct burial or vault applications |
| Standard: | ANSI C119.4, Shield Test IEEE 592 |
| Voltage Rating: | 69 kV |
| Temperature Rating: | 90 C |
