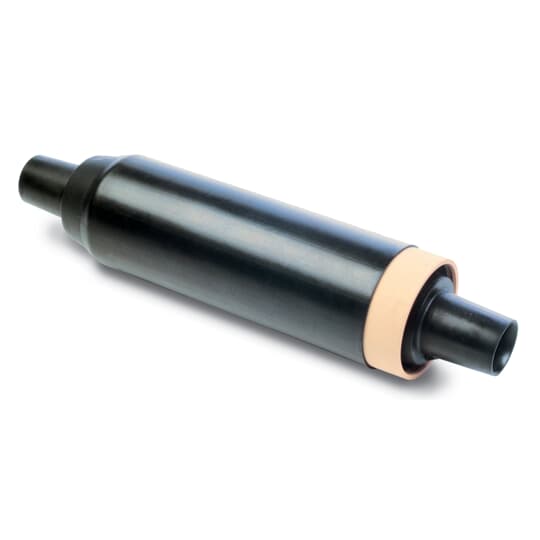

ABB - Installation Products 69kv Tcj Cable Joint Kit
ABB - Installation Products #:69TCJS44247P5MANNB
SKU: ABBI69TCJS44247P5MANNB
UPC: 075114379281
SKU: ABBI69TCJS44247P5MANNB
UPC: 075114379281
Your Price: $15,040.26 / EA
ABB - Installation Products 69kv Tcj Cable Joint Kit
Ask about this product
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
69 kv, Transmission Cable Joint, Housing Type - Shieldbreak, Housing Style 4, Housing Size 4, Connector type Copper/no connector required, Connector Code 47P - Conductor Diameter Range - 1.378-1.425 inch (35.00-36.19mm), Heatsink Size 5 - Outside Diameter 2.750 inch ( 69.85mm), Heatsink Bore - M - 1.468 inch Diameter. Type Shield - A - Copper Tape, Metallic Screen Continuity Kit - N - not required, Armor Kit - N - not required, Outer Jacket Restoration Kit - B - Heat Shrink standard package
| Number Of Conductors: | 2 |
| Color: | Black |
| Connection: | Compression |
| Material: | EPDM Rubber |
| Type: | Transmission Cable Joint - Shieldbreak |
| Special Features: | Each Cable Joint is produced exactly to design, producing a quality not possible with field molding equipment or tape. Electrically tested in the factory to ensure consistent quality. Molding is done in the factory, reducing on-site time - no penciling |
| Application: | For use on Solid Dielectric Cables - providing permanent, fully-shielded, fully submersible cable joints for direct burial or vault applications |
| Standard: | ANSI C119.4, Shield Test IEEE 592 |
| Voltage Rating: | 69 kV |
| Temperature Rating: | 90 C |
| Insulation: | Yes EPDM Rubber |
| Conductor Range: | 1.378 to 1.425 in , 35 to 36.19 mm |
