Your Price: $78.29 / EA
Burndy 500-4/0 TO 250-2 CU FIG
Ask about this product 500-4/0 TO 250-2 CU FIG
Specification Sheet
Weight:
Country of Origin:
Lead Time: 11 Days
Detailed Description

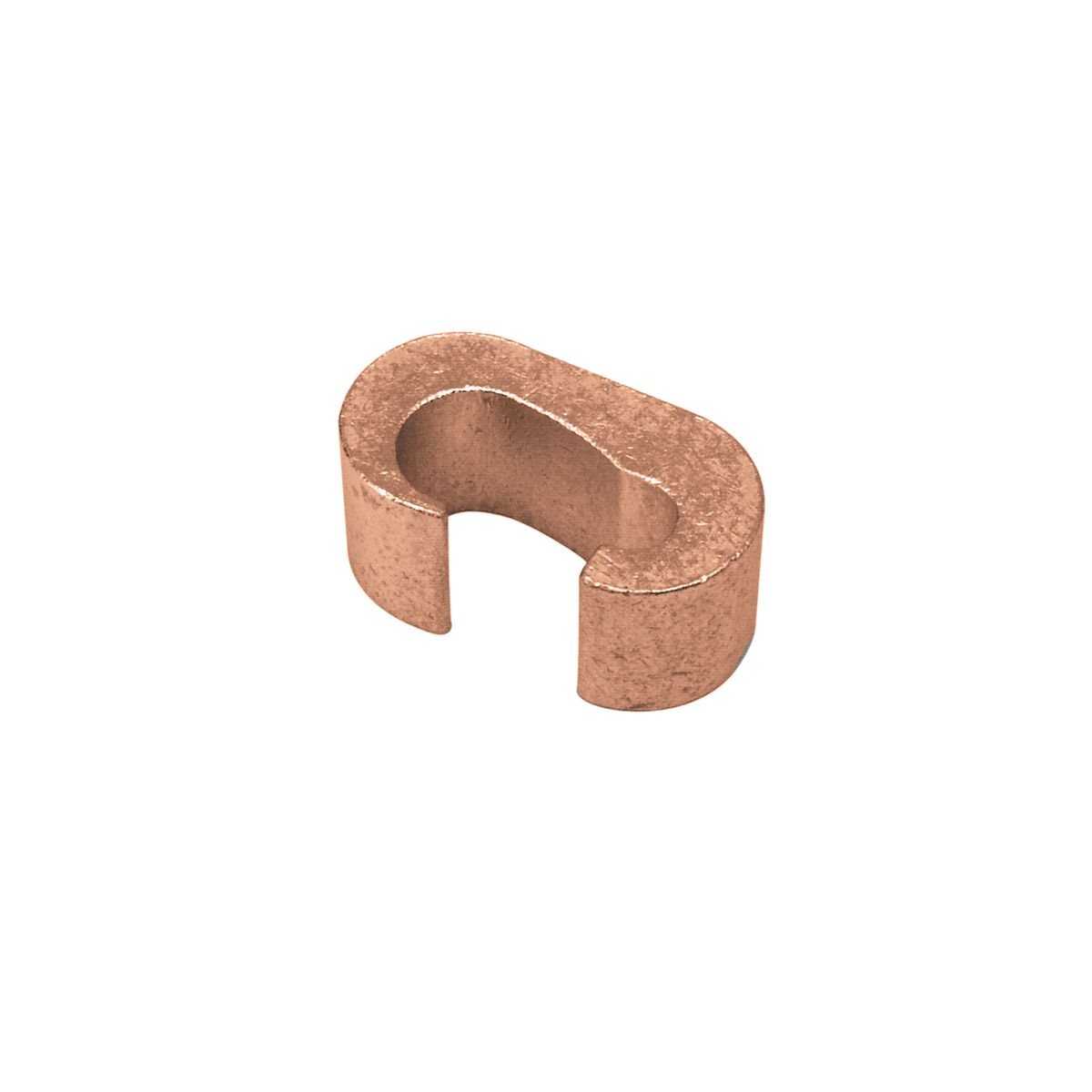

Copper Compression C Tap, 500 kcmil-4/0 AWG (Main), 250 kcmil-2 AWG (Tap 1), 2-6 AWG (Tap 2), Tin Plated.
| Voltage - Maximum: | 35000 |
| Product Type: | RUN/TAP |
| Dimension - Height inch: | 2.45 in |
| Plating Type: | Tin - Electro Plated |
| Application: | Wire Tap |
| Finish: | Tin-Plated |
| Material: | COPPER |
| Standard: | UL 486A-486B |
| Special Features: | Features: Wide Range Of Run/Tap Combinations Including Class B Code I And Locomotive Flexible Conductor Combinations, All (B/B, B/I, I/I) Combinations Are Recommended: Each Connector Accommodates Many Cable Combinations, Allowing Maximum Flexibility For T |
| Type: | YCHC Series |
| Conductor Size: | 500 KCMIL-250 KCMIL |
