Your Price: $9.79 / EA

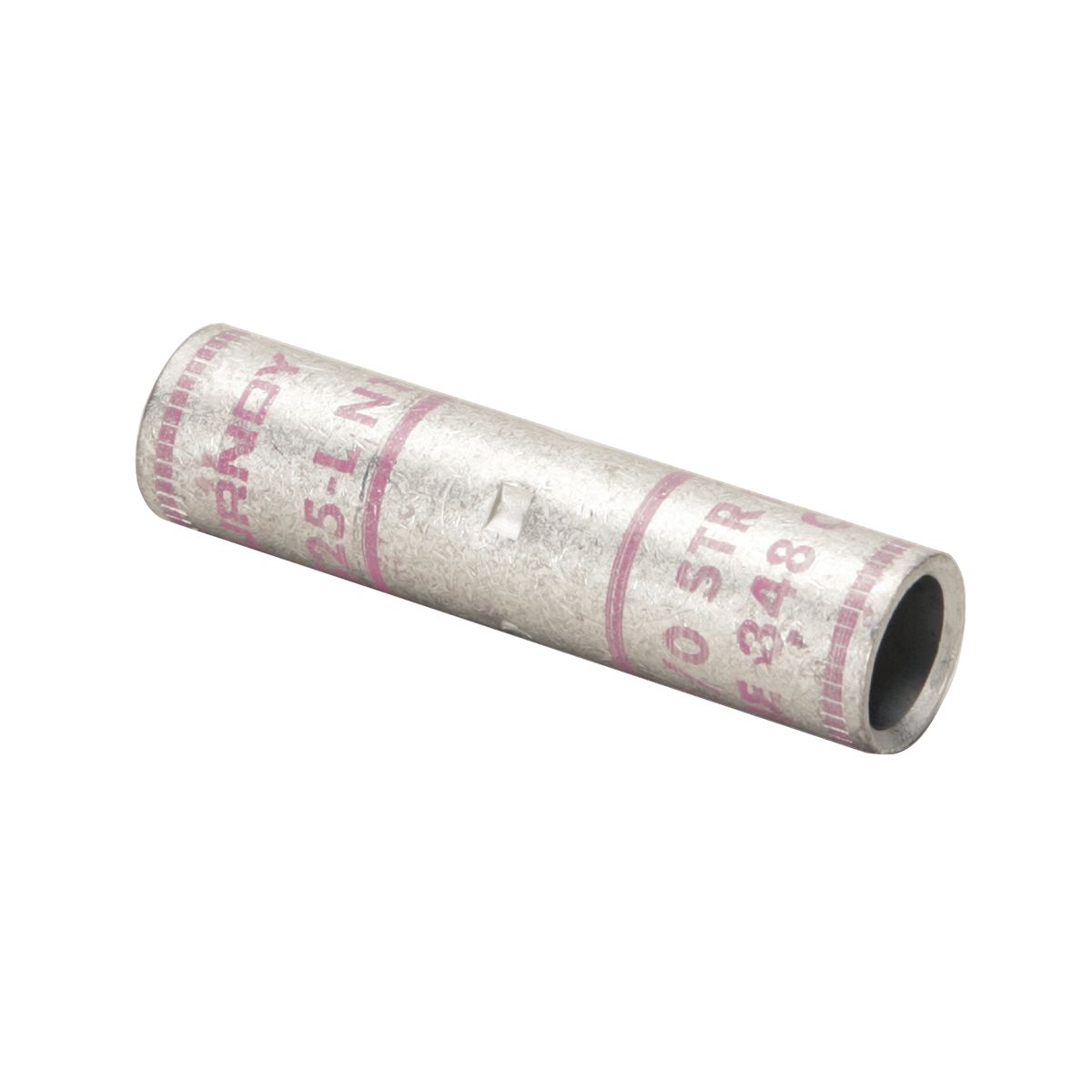

Burndy 4 STR. CU. BUTT SPLICE
Ask about this product 4 STR. CU. BUTT SPLICE
Specification Sheet
Weight:
Country of Origin:
Lead Time: 10 Days
Detailed Description
4 AWG CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, GRAY Color Code, 8 or 346 Die Index.
| Voltage - Maximum: | 35000 |
| Rating - KVA: | 35 kV |
| Product Type: | SPLICE |
| Plated: | Y |
| Dimension - Outside Diameter inch: | 0.34 in |
| Application: | Wire Splice |
| Finish: | Tin-Plated |
| Material: | COPPER |
| Voltage Rating: | 35 kV |
| Special Features: | Features: Standard Barrel Length, Ideal For Limited Space Applications While Providing Ample Barrel Length For Proper Crimp, Four (4) Center Conductor Stops, Provides A Center Wire Stop For Proper Conductor Insertion, Conductor Type: Commercial Stranded C |
| Standard: | UL 486A-486B |
| Type: | YS-L, Standard Barrel |
