Burndy 350-4/0AWG INSL PRC CONN
Ask about this product 350-4/0AWG INSL PRC CONN
Specification Sheet
Weight:
Country of Origin:
Lead Time: 11 Days
Detailed Description

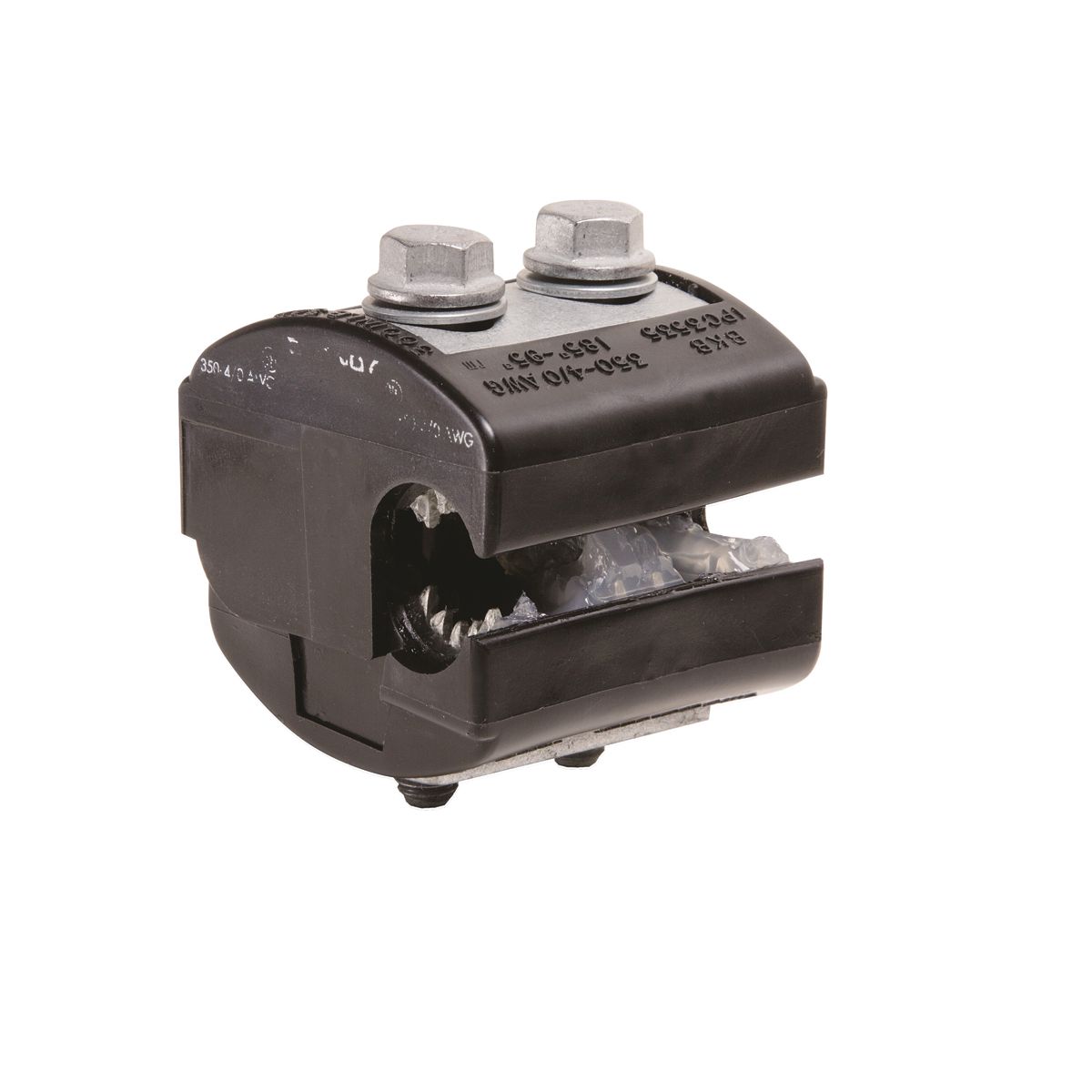

Insulation Piercing Connector, 4/0 AWG-350 kcmil (Run), 10-4/0 AWG (Tap), 300 V.
| Physical Attribute - Screw Type: | Hexagonal Bolt |
| Voltage - Maximum: | 300 V |
| Product Name: | BIPC3504/0, Discontinued - Insulating Piercing Connector |
| Dimension - Height inch: | 3.00 in |
| Dimension - Width mm: | 64 mm |
| Standard: | UL 486A-486B |
| Material: | Aluminum |
| Application: | For Splicing And Tapping Aluminum And Copper Conductors |
| Type: | BIPC |
| Special Features: | Features: Insulation Piercing Capability: Eliminates The Need For Conductor Insulation Stripping, UL486B Listed, AL9CU Rated: For Copper And Aluminum Conductor Combinations Up To 90 DEG C 600 Volt Applications, Insulation Piercing Design: Eliminates The N |
