General Cable 2P/24 7/32TC FL/BRDSH CMR CMG
General Cable #:C0620A.41.10
SKU: PRYSC0620A.41.10
UPC: 079407276707
SKU: PRYSC0620A.41.10
UPC: 079407276707
Your Price: $0.00
General Cable 2P/24 7/32TC FL/BRDSH CMR CMG
Ask about this product 2P/24 7/32TC FL/BRDSH CMR CMG
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

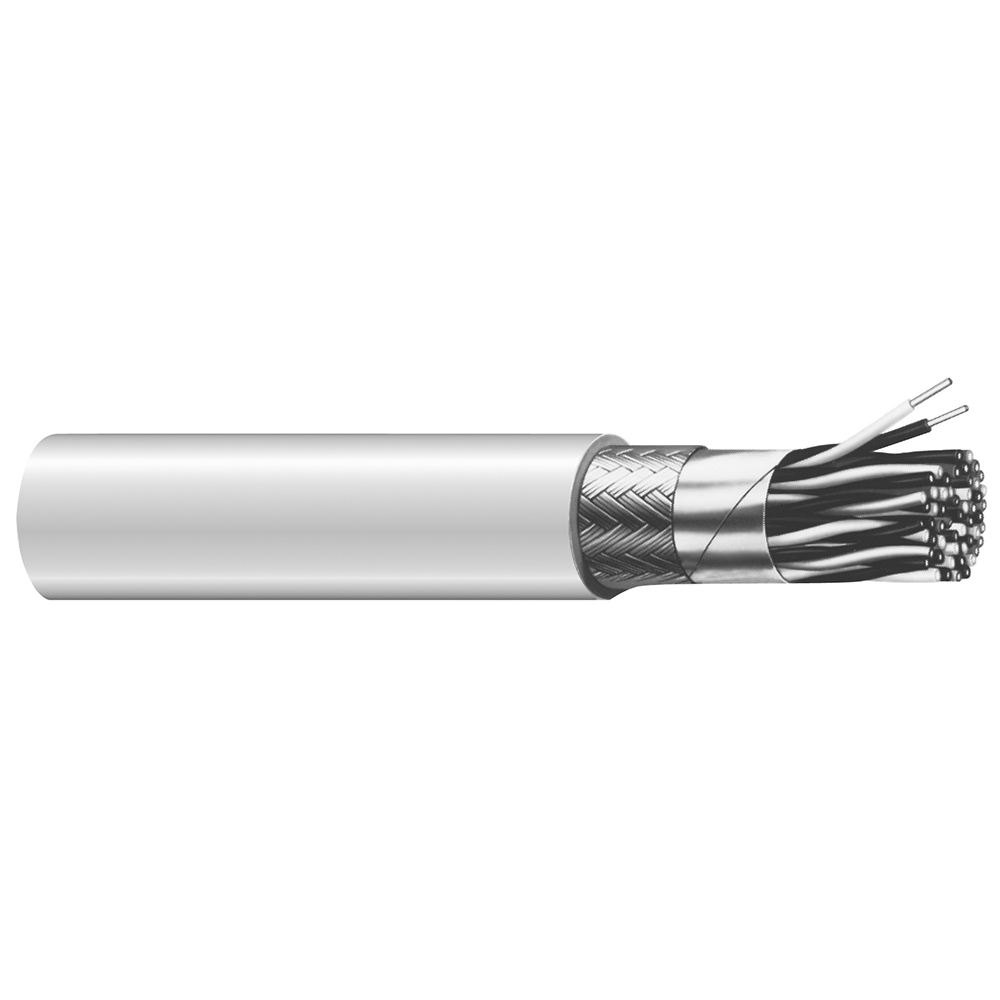

Multi-Paired, Foil Shield UL 2464, NEC Type CM (UL) c(UL) or CMR (UL) c(UL), CSA CMG, 2P/24 7/32TC FL/BRDSH CMR CMG
| Shield: | Flexfoil |
| Temperature Rating: | (-20C to +80C) |
| Jacket Material: | PVC |
| Number Of Conductors: | 2 |
| Application: | Computers; industrial equipment; data transmission; control circuits; suitable for EIA RS-232 applications; suggested voltage rating: 300 volts |
| Braid: | tinned copper |
| Color: | Gray |
| Conductor Material: | fully annealed stranded tinned copper |
| Insulation Material: | Premium-grade, color-coded S-R PVC |
| NEMA Color: | Gray |
| Special Features: | Braid shield provides good flexibility; superior shielding where noise rejection is critical; assists system designers in meeting FCC Docket 20780 demands |
| Standard: | NEC Article 800 Type CMR; UL Style 2464; CSA CMG; RoHS Compliant Directive 2002/95/EC; Deisgned to meet UL 70,000 BTU Vertical Flame Test; Passes CSA CMG Flame Test |
| Conductor Size: | 24 AWG |
| Strands: | 7/32 |
| Outside Diameter: | 0.235 in |
