ABB - Installation Products 25kv Pwr Cable Jnt1 750strn Al 1.37
ABB - Installation Products #:25PCJ1M1380
SKU: ABBI25PCJ1M1380
UPC: 783786631674
SKU: ABBI25PCJ1M1380
UPC: 783786631674
Your Price: $187.39 / EA
ABB - Installation Products 25kv Pwr Cable Jnt1 750strn Al 1.37
Ask about this product
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

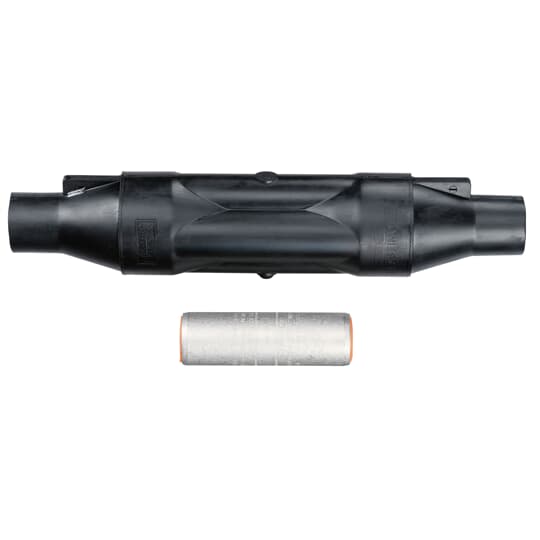

25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Conductor. Conductor Size AWG Stranded 750.
| Number Of Conductors: | 2 |
| Color: | Black |
| Application: | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Size: | 14-3/8 inch long |
| Special Features: | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to e |
| Standard: | IEEE Standard 404 |
| Type: | Power Cable Joint |
| Voltage Rating: | 25 kV |
| Conductor Range: | 750 kcmil |
