Prysmian Group 15P/18 16/30TC IND SH PLTC
Prysmian Group #:C0590A.41.10
SKU: PRYSC0590A.41.10
UPC: 079407726189
SKU: PRYSC0590A.41.10
UPC: 079407726189
Your Price: $0.00
Prysmian Group 15P/18 16/30TC IND SH PLTC
Ask about this product 15P/18 16/30TC IND SH PLTC
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

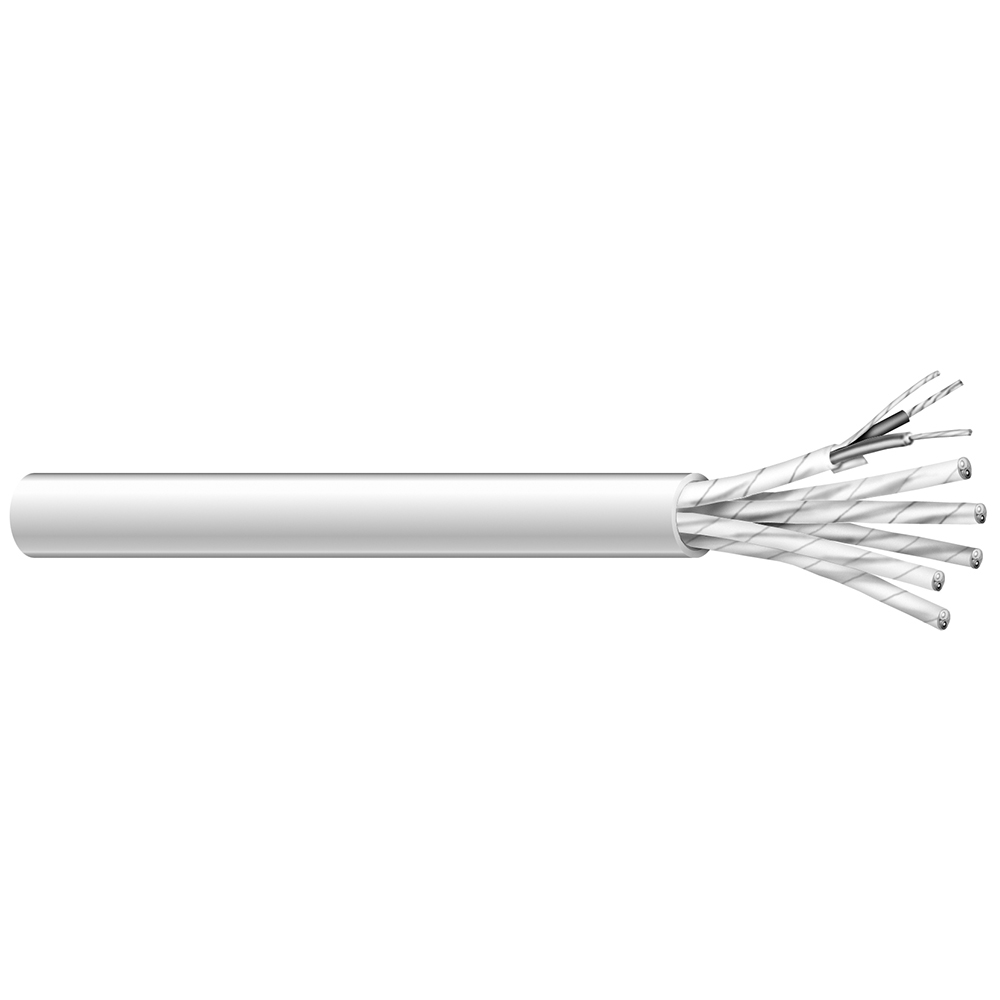

Power-Limited Tray Cable, Individually Shielded, UL 2464, NEC Type PLTC and CSA CMG, 15P/18 16/30TC IND SH PLTC
| Conductor Size: | 18 AWG |
| Jacket Material: | PVC |
| Shield: | Flexfoil |
| Color: | Gray |
| NEMA Color: | Gray |
| Conductor Material: | fully annealed stranded tinned copper |
| Number Of Conductors: | 15 |
| Insulation Material: | Premium-grade, color-coded PVC |
| Temperature Rating: | (-20C to +105C) |
| Type: | Communication & Contol Cable, Multi-Paired |
| Special Features: | Superior temperature characteristics; robust, highly durable; sunlight resistant |
| Strands: | 16/30 |
| Application: | Power-limited circuits; intercom systems; business machines; cash registers; computer interconnects; suitably marked for appropriate tray cable installations; burglar alarms; suggested voltage rating: 300 volts |
| Standard: | NEC Article 725 Power-Limited Tray Cable; UL Style 2464; CSA CMG; RoHS Compliant Directive 2002/95/EC; Designed to meet UL 70,000 BTU Vertical Tray Flame Test; Passes CSA CMG Flame Test |
| Outside Diameter: | 0.845 in |
