ABB - Installation Products 15kv Molded Current Limiting Fuse
ABB - Installation Products #:M15CLF080-66-WMB
SKU: ABBIM15CLF080-66-WMB
UPC: 075114240079
SKU: ABBIM15CLF080-66-WMB
UPC: 075114240079
Your Price: $7,777.42 / EA
ABB - Installation Products 15kv Molded Current Limiting Fuse
Ask about this product Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

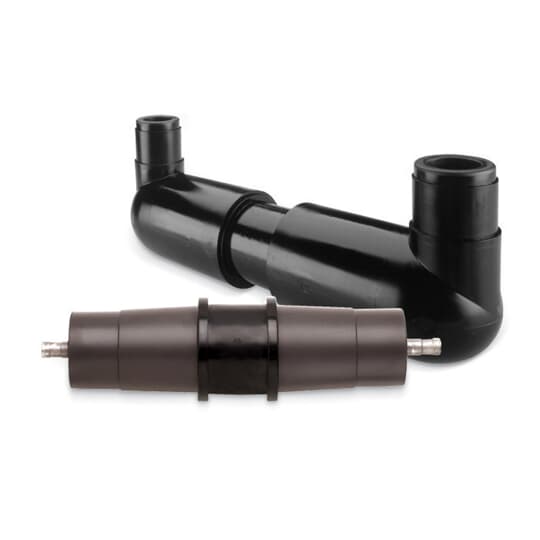

Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 8.3kV, Current Rating Amps 80, WMB option - Wall Mount Bracket with parking stands and bolted style hold down straps, Option 66 - 600 Amp bushings on both ends
| Amperage Rating: | 80 A |
| Mounting: | Clip |
| Type: | Molded Current-Limiting Fuse |
| Special Features: | EPDM Molded Rubber Deadfront Contruction Insulates, Shields and Elimates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Ra |
| Application: | Suitable for Padmount, Subsurface or Vault Installations |
| Standard: | ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386 |
| Voltage Rating: | 15.0 kV |
| Material: | EPDM Molded Rubber |
| Size: | Overall Length 19-5/8 in (498mm) x Width 5-1/8 in (130mm) |
