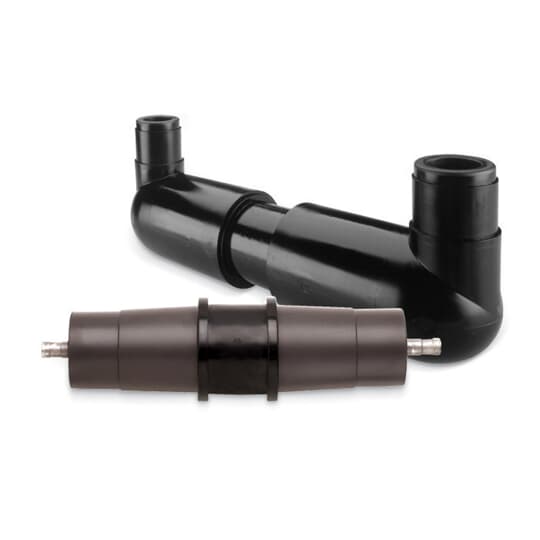

ABB - Installation Products 15kv Molded Current Limiting Fuse
ABB - Installation Products #:M15CLF010-22-WMB
SKU: ABBIM15CLF010-22-WMB
UPC: 075114290067
SKU: ABBIM15CLF010-22-WMB
UPC: 075114290067
Your Price: $7,125.71 / EA
ABB - Installation Products 15kv Molded Current Limiting Fuse
Ask about this product Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
15kV, Molded Current Limiting Fuse, 10 Amperes for Voltage Classes 15-25-35KV, 200 Amp Bushing Wells on Both Ends. Wall Mounting Bracket with Parking Stands and Bolted Style Hold Down Straps.
| Amperage Rating: | 10 A |
| Mounting: | Clip |
| Type: | Molded Current-Limiting Fuse |
| Special Features: | EPDM Molded Rubber Deadfront Contruction Insulates, Shields and Elimates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Ra |
| Application: | Suitable for Padmount, Subsurface or Vault Installations |
| Standard: | ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386 |
| Voltage Rating: | 15.0 kV |
| Material: | EPDM Molded Rubber |
| Size: | Overall Length 19-1/2 in (496mm) x Width 5-1/8 in (130mm) |
