ABB - Installation Products 15kv Molded Clf
ABB - Installation Products #:M15CLF-115-6E2SMB
SKU: ABBIM15CLF-115-6E2SMB
UPC: 075114180665
SKU: ABBIM15CLF-115-6E2SMB
UPC: 075114180665
Your Price: $7,578.75 / EA
ABB - Installation Products 15kv Molded Clf
Ask about this product Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

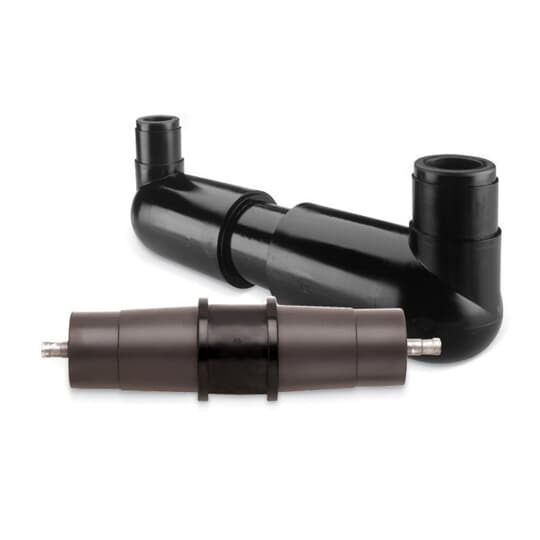

Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 8.3kV, Current Rating Amps 115, Option 6E2 - 600 Amp Elbow connector on one end and a 200 Amp Bushing Well on the other end, Option SMB - Support Mounting Bracket includes Bolted style Hold Down Strap
| Mounting: | Clip |
| Amperage Rating: | 115 A |
| Type: | Molded Current-Limiting Fuse |
| Special Features: | EPDM Molded Rubber Deadfront Contruction Insulates, Shields and Elimates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Ra |
| Application: | Suitable for Padmount, Subsurface or Vault Installations |
| Standard: | ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386 |
| Voltage Rating: | 15.0 kV |
| Material: | EPDM Molded Rubber |
| Size: | Overall Length 19-5/8 in (498mm) x Width 5-1/8 in (130mm) |
