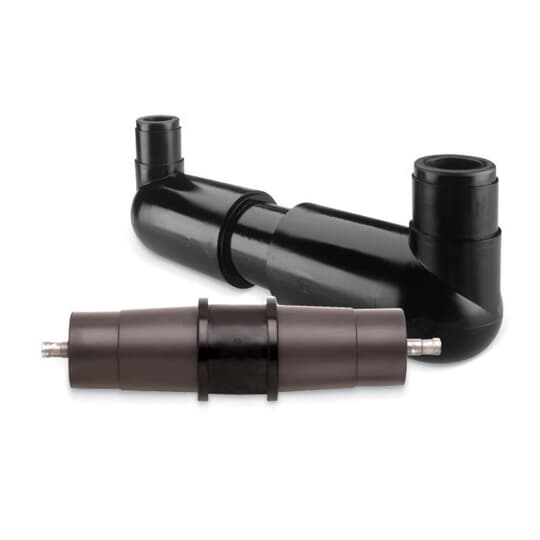

ABB - Installation Products 15kv 80a Fuse
ABB - Installation Products #:M15CLF08022WMBQTMA
SKU: ABBIM15CLF08022WMBQTMA
UPC: 783786357482
SKU: ABBIM15CLF08022WMBQTMA
UPC: 783786357482
Your Price: $7,136.05 / EA
ABB - Installation Products 15kv 80a Fuse
Ask about this product Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 8.3kV, Current Rating Amps 80, Option WMBQ - Wall mounting bracket with parking stands and quick release style hold down straps, Option 22 - 200 Amp bushings Well on both ends, Option TMA - Tilt Mounting Adapter, bolts to bottom of Wall Mounting Bracket WMB or WMBQ to enable up to 60 degree angle
| Amperage Rating: | 80 A |
| Mounting: | Clip |
| Type: | Molded Current-Limiting Fuse |
| Special Features: | EPDM Molded Rubber Deadfront Contruction Insulates, Shields and Elimates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Ra |
| Application: | Suitable for Padmount, Subsurface or Vault Installations |
| Standard: | ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386 |
| Voltage Rating: | 15.0 kV |
| Material: | EPDM Molded Rubber |
| Size: | Overall Length 19-1/2 in (496mm) x Width 5-1/8 in (130mm) |
