Your Price: $112.00 / EA

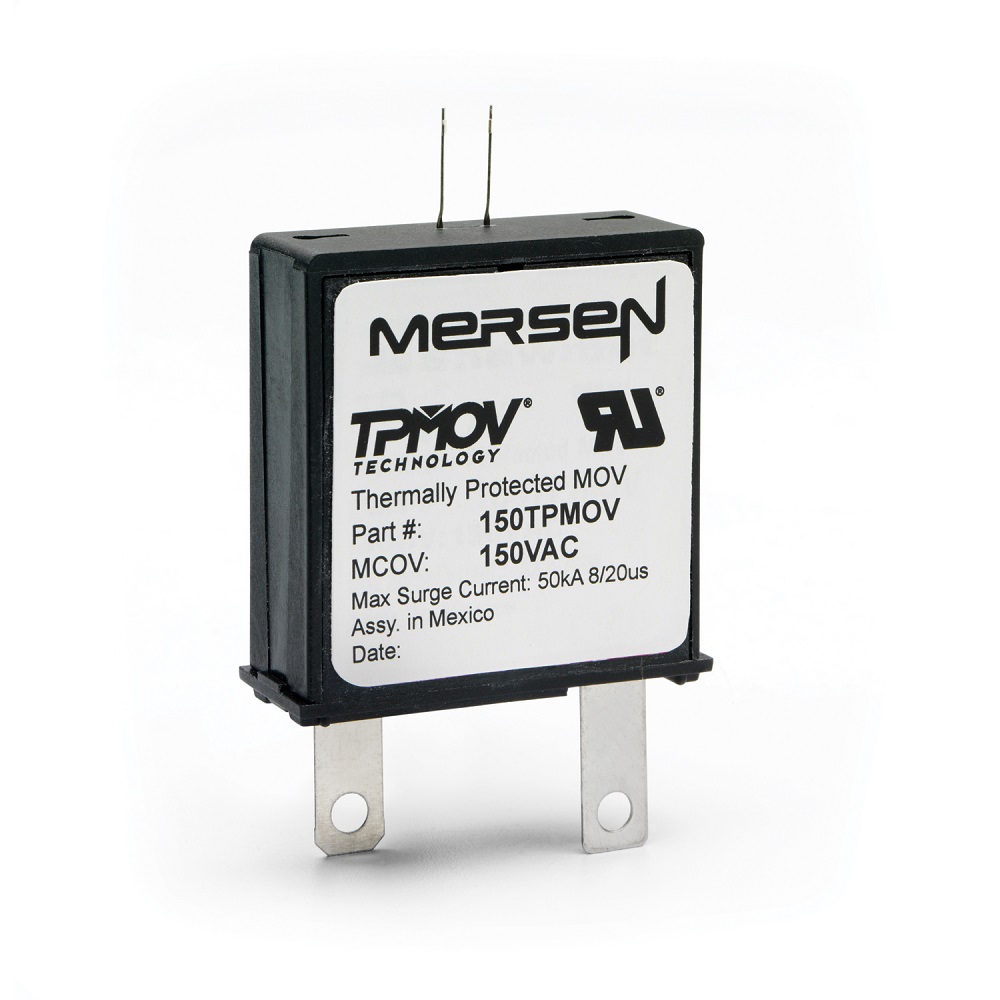

Mersen 150 TPMOV SHORT LEAD WITH VISU
Ask about this product 150 TPMOV SHORT LEAD WITH VISU
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Mersen's patented TPMOV (Thermally Protected Metal Oxide Varistor ) eliminates common destructive failure modes associated with standard MOVs. Comprised of a voltage clamping device and a disconnecting apparatus that monitors the status of the metal oxide disk inside the TPMOV, the device is securely disconnected in the event of an overvoltage by an arc shield. Upon failure, the TPMOV is also equipped with a visual pin indicator as well as a normally open microswitch providing remote indication, if applicable. 180 Volts Short Leads with indication series.
| Voltage Rating: | 180 VAC |
| Application: | Surge protective devices and systems AC / DC distribution systems High voltage power supplies Telecommunications equipment Motor control systems Computer related products PLC applications Power transfer switches |
| Connection: | Solder |
| Short-Circuit Rating: | 200 kA |
| Special Features: | 50kA 8/20MicroSec Max Surge Rating UL 1449 Third Edition Recognized Consistent footprint with 25-40mm MOV's Visual/Remote Indication Small Package |
| Standard: | UL Recognized Component RoHS Compliant |
| Type: | Thermally Protected MOV (TPMOV) |
| Type of Indicators: | Microswitch |
| Mounting: | PCB |
