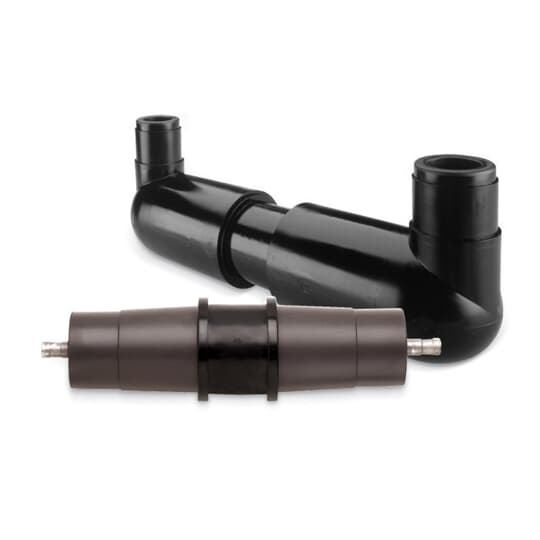

ABB - Installation Products 15.5kv Encapsulated Fuse Mclf
ABB - Installation Products #:M25CLF012-22-WMB
SKU: ABBIM25CLF012-22-WMB
UPC: 075114192972
SKU: ABBIM25CLF012-22-WMB
UPC: 075114192972
Your Price: $6,930.31 / EA
ABB - Installation Products 15.5kv Encapsulated Fuse Mclf
Ask about this product Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 15.5kV, Current Rating Amps 12, WMB option - Wall Mount Bracket with parking stands and bolted style hold down straps, Option 22 - 200 Amp bushings on both ends
| Mounting: | Clip |
| Amperage Rating: | 12 A |
| Type: | Molded Current-Limiting Fuse |
| Special Features: | EPDM Molded Rubber Deadfront Contruction Insulates, Shields and Elimates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Ra |
| Application: | Suitable for Padmount, Subsurface or Vault Installations |
| Standard: | ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386 |
| Material: | EPDM Molded Rubber |
| Voltage Rating: | 25.0 kV |
| Size: | Overall Length 19-1/2 in (496mm) x Width 5-1/8 in (130mm) |
