Prysmian Group 14/5 NEOPRENE D RL CRD BLK
Prysmian Group #:02935.99.01
SKU: PRYS02935.99.01
UPC: 079407421909
SKU: PRYS02935.99.01
UPC: 079407421909
Your Price: $0.00
Prysmian Group 14/5 NEOPRENE D RL CRD BLK
Ask about this product 14/5 NEOPRENE D RL CRD BLK
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

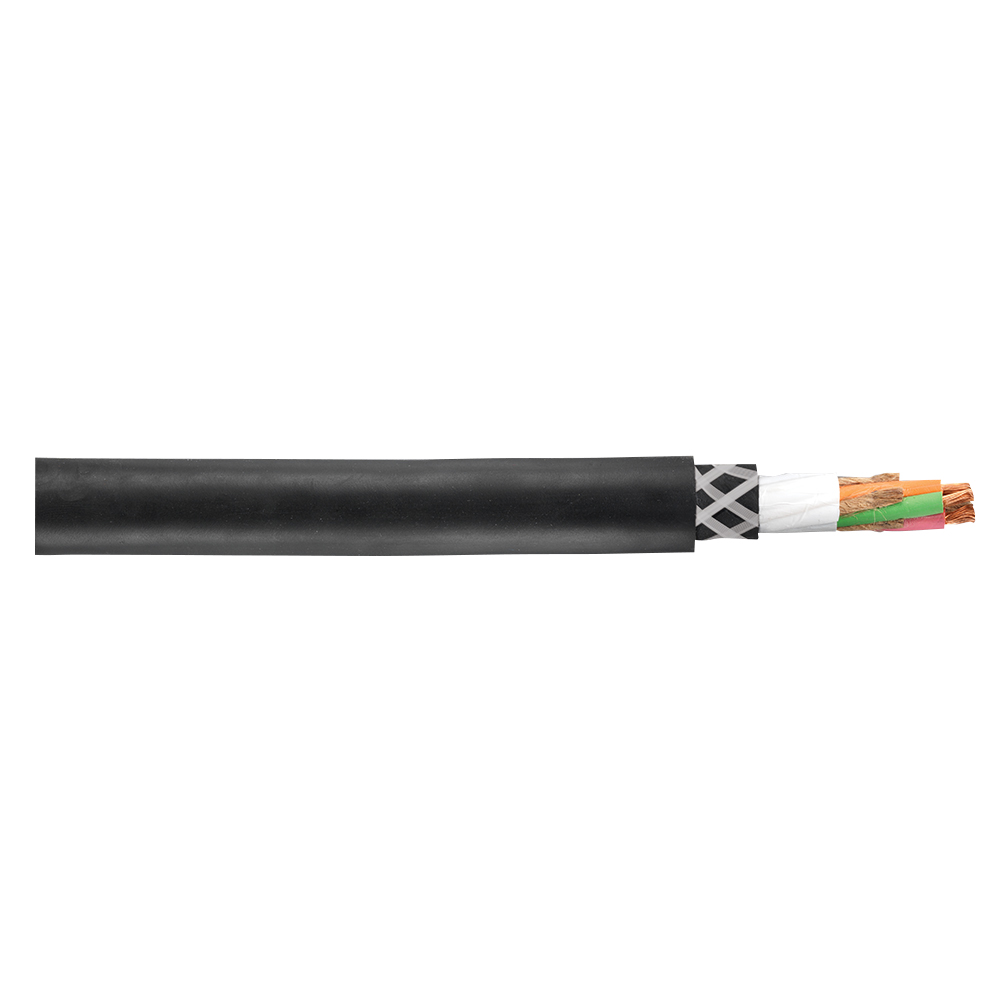

Carol DBL Jacket DReel Cord 90C 600V MSHA Approved Remote CNTReel & DReel Cord, 14/5 NEOPRENE DRILL CORD Black
| _Jacket Color: | Black |
| _Conductor: | 5 |
| _Conductor Stranding: | 41/30 |
| _Standards: | RoHS Compliant Passes MSHA Flame Test Additional rating available upon request Other sizes and numbers of CNDTRs available upon request |
| Voltage Rating: | 600 |
| Conductor Material: | Fully annealed stranded bare copper |
| Conductor Size: | 14 |
| Temperature Rating: | 90C |
| Length: | 1 FT |
| Insulation Material: | Premium-grade, color-coded 90C EPDM |
| Amperage Rating: | 12 |
| Application: | INDL and LT- to MED-DTY mining applications HD SVC as PWR SPLY CBL AC SYSs (GRNDD and unGRNDD) HD and LG SVC life applications Mobile and PORT electrical equipment MOTR and battery leads Wet or dry locations in underground mines in accordance with S |
| Special Features: | Withstands severe environmental conditions Indent-printed for easy identification Withstands exposure to oil, acid, alkalies, HT, moisture and most chemicals FLEX stranding Excellent impact, crush and tear resistance Sunlight-RST Reinforced jacket f |
| Weight: | 0.4089 L |
| Jacket Material: | Neoprene |
