General Cable 12C/22 7/30BC OAS CMR/CL3R
General Cable #:E2012S.30.10
SKU: PRYSE2012S.30.10
UPC: 079407830930
SKU: PRYSE2012S.30.10
UPC: 079407830930
Your Price: $0.00
General Cable 12C/22 7/30BC OAS CMR/CL3R
Ask about this product 12C/22 7/30BC OAS CMR/CL3R
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

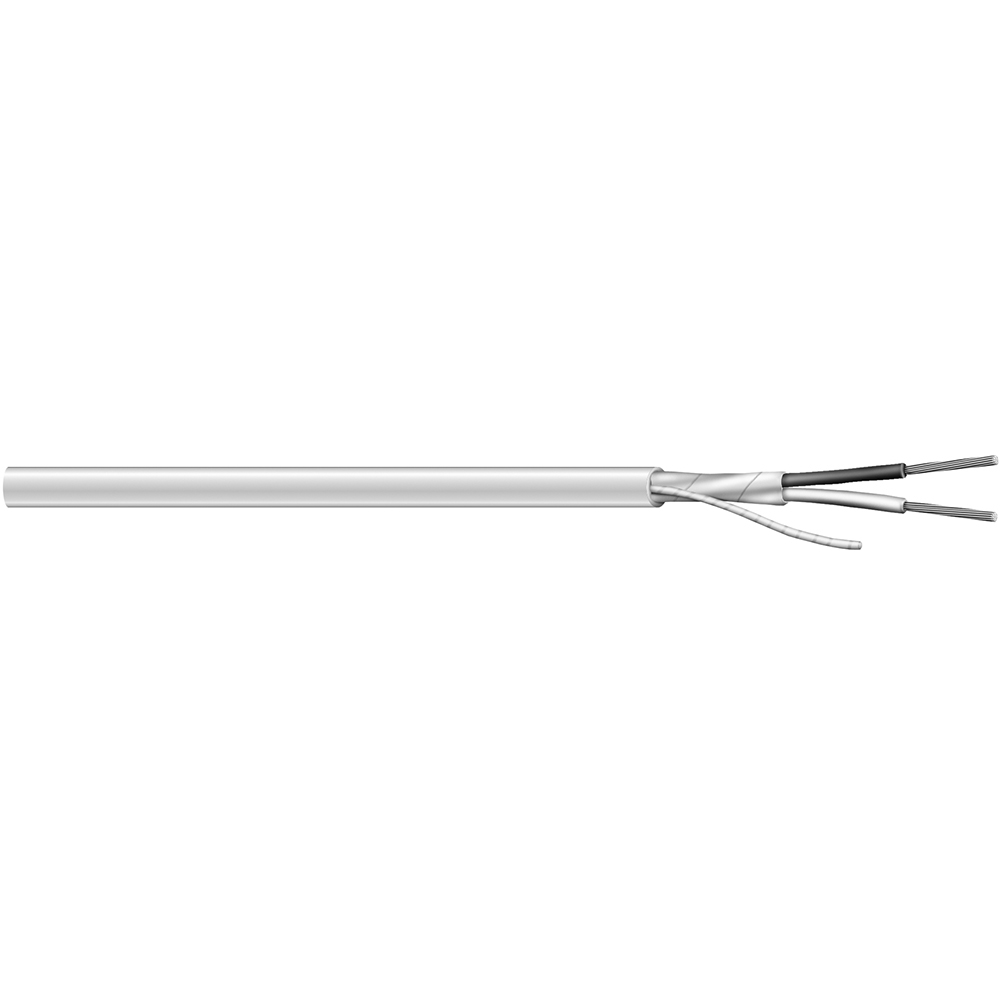

Multi-Conductor, Shielded, Riser NEC Type CMR and/or CL3R, 12C/22 7/30BC OAS CMR/CL3R
| Conductor Size: | 22 |
| Color: | Gray |
| Insulation Material: | Premium-grade, color-coded S-R PVC |
| Jacket Material: | Premium-grade PVC |
| Application: | PowerLimited control circuits Wiring of the following systems: Intercom Security Audio Background music Suggested voltage rating: 300 volts |
| Conductor Material: | Stranded bare copper |
| Length: | 1000 |
| Weight: | 0.04 |
| Standard: | NEC Article 725 Type CL3R (UL: 75C, 150V) NEC Article 800 Type CMR (UL: 75C, 300V) RoHS Compliant Directive 2002/95/EC California State Fire Marshall Approved |
| Number Of Conductors: | 12 |
