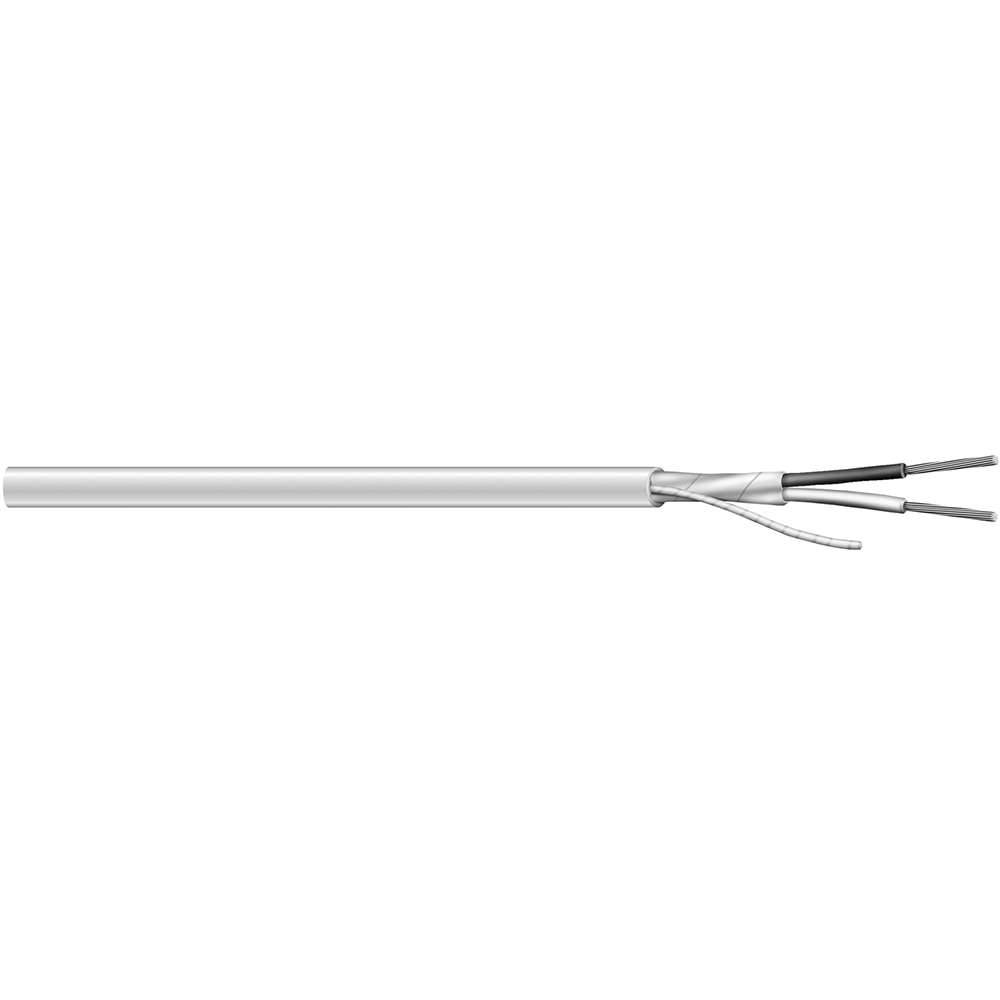

Prysmian Group 12C/18 7/26BC PVC/OA/PVC CMP
Prysmian Group #:C3184.41.02
SKU: PRYSC3184.41.02
UPC: 079407032938
SKU: PRYSC3184.41.02
UPC: 079407032938
Your Price: $0.00
Prysmian Group 12C/18 7/26BC PVC/OA/PVC CMP
Ask about this product 12C/18 7/26BC PVC/OA/PVC CMP
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
Multi-Conductor, Foil Shield NEC Type CMP (UL) c(UL) and CL3P,
| Insulation Material: | Premium-grade, color-coded Flexguard PVC |
| Temperature Rating: | (0C to +75C) |
| Application: | Intercom systems; background music; audio systems; power-limited control circuits; suggested voltage rating: 150 volts |
| Conductor Size: | 18 AWG |
| Jacket Material: | PVC |
| Special Features: | Flexible; easy to terminate |
| Standard: | NEC Article 725; NEC Article 800; designed to meet NFPA 262 and CSA FT6 Steiner Tunnel Fire Tests for Plenum Applications |
| Type: | Communication & Contol Cable, Multi-Conductor |
| Shield: | Flexfoil |
| Conductor Material: | fully annealed stranded tinned or bare copper |
| Color: | White |
| NEMA Color: | White |
| Strands: | 7/26 BC |
| Number Of Conductors: | 12 |
| Outside Diameter: | 0.308 in |
