Prysmian Group 12C/18 7/26BC PVC/NS/FLEX CMP
Prysmian Group #:C3124.41.86
SKU: PRYSC3124.41.86
UPC: 079407139873
SKU: PRYSC3124.41.86
UPC: 079407139873
Your Price: $0.00
Prysmian Group 12C/18 7/26BC PVC/NS/FLEX CMP
Ask about this product 12C/18 7/26BC PVC/NS/FLEX CMP
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

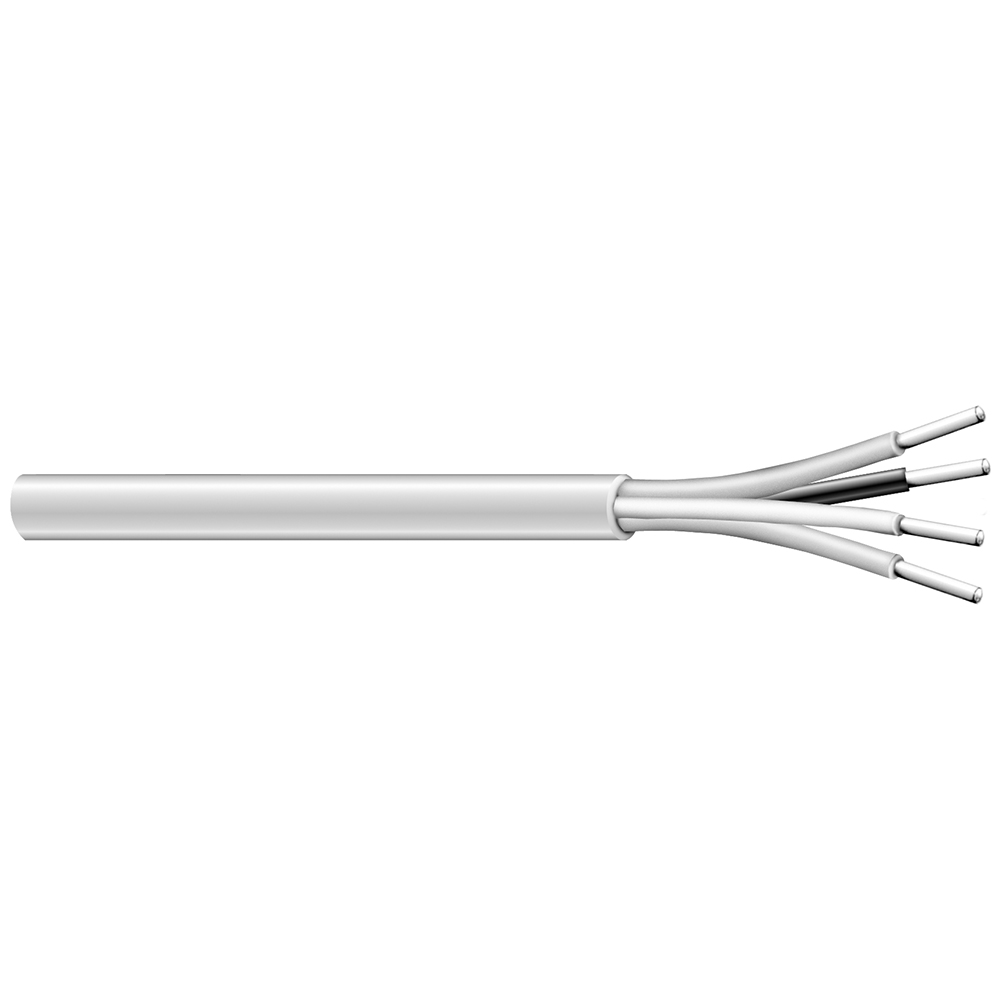

Multi-Conductor, Unshielded NEC Type CMP (UL) c(UL) and/or CL3P, 12C/18 7/26BC PVC/NS/FLEX CMP
| Insulation Material: | Premium-grade, color-coded Flexguard PVC |
| NEMA Color: | Natural |
| Temperature Rating: | (0C to +75C) |
| Color: | Natural |
| Application: | Intercom systems; background music; audio systems; power-limited control circuits; suggested voltage rating: 150 volts |
| Conductor Material: | fully annealed solid, stranded tinned or bare copper |
| Conductor Size: | 18 AWG |
| Jacket Material: | PVC |
| Special Features: | Flexible; easy to terminate |
| Standard: | NEC Article 725; NEC Article 800; designed to meet NFPA 262 and CSA FT6 Steiner Tunnel Fire Tests for Plenum Applications |
| Type: | Communication & Contol Cable, Multi-Conductor |
| Strands: | 7/26 BC |
| Number Of Conductors: | 12 |
| Outside Diameter: | 0.287 in |
