Your Price: $156.06 / EA
Mersen 120/240V SPLIT PHASE WITH REM
Ask about this product 120/240V SPLIT PHASE WITH REM
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description

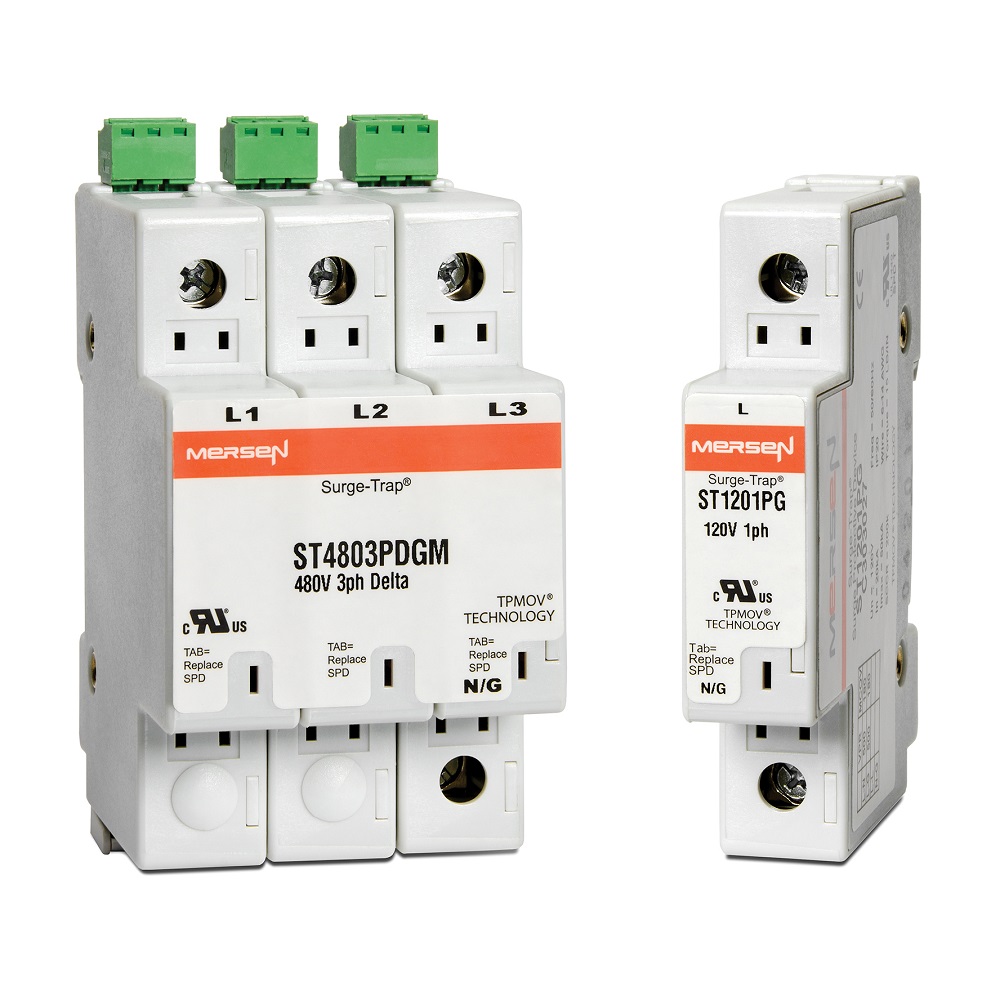

Surge-Trap Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV technology without additional protection devices. 120/240 Volts split phase system type with microswitch .
| Voltage Rating: | 120 Vac |
| Short-Circuit Rating: | 200 kA |
| Type of Indicators: | Microswitch |
| Application: | AC/DC distribution Power supplies Industrial automation Telecommunications Motor controls and starter systems Programmable logic controller (PLC) applications Power transfer equipment HVAC applications AC drives UPS systems Security sy |
| Connection: | Box |
| Special Features: | Easy installation or retrofit Din-rail mountable Fail-safe /self-protected design Remote indicator (optional) with 3 pin NO/NC contact IP20 finger-safe design Visual indicator Small foot print No additional overcurrent protection devices needed |
| Standard: | UL 1449 Third Edition, File No E210793 Type 1 Component Assembly IEC 61643-1 ANSI/IEEE C62.41 CE RoHS compliant |
| Type: | Surge-Trap SPD |
| Mounting: | DIN-rail |
