NSi Industries 12-Prt BLK Pre-Insltd Tenant Tap Conn 750MCM-1/0AWG
NSi Industries #:IPLDS750-6
SKU: NSIIIPLDS750-6
UPC: 662381951731
SKU: NSIIIPLDS750-6
UPC: 662381951731
Your Price: $347.18 / EA
NSi Industries 12-Prt BLK Pre-Insltd Tenant Tap Conn 750MCM-1/0AWG
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 12-Prt BLK Pre-Insltd Tenant Tap Conn 75
Detailed Description

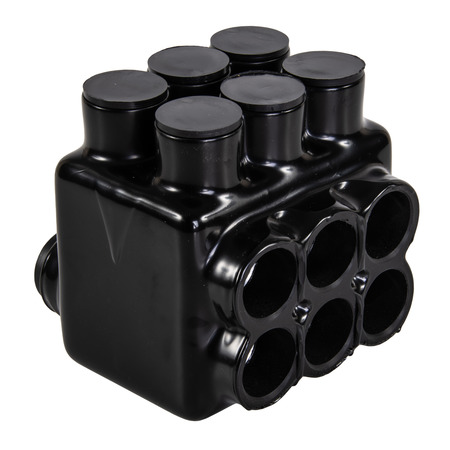

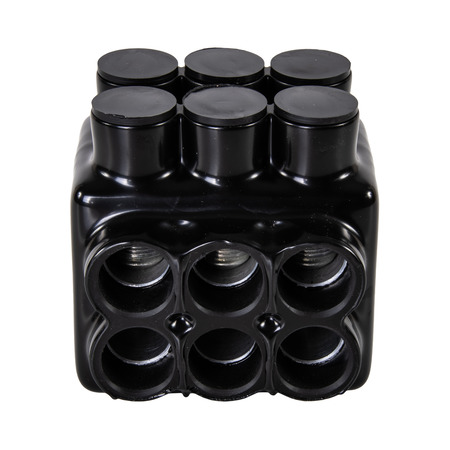

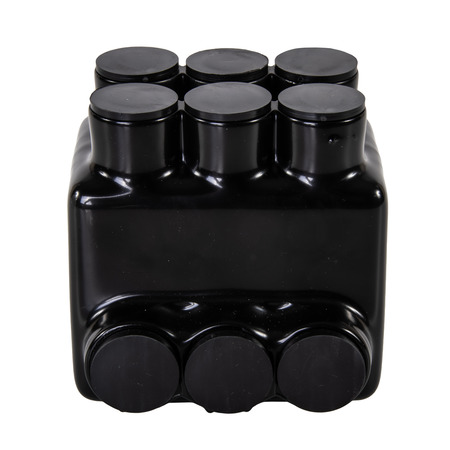

The Polaris IPLDS750-6 Multi-Tap Dual-Sided Entry Connector features 6 ports sized for 750 MCM - 1/0 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. One side features stacked ports, with double-sided ports on the bottom for greater flexibility. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of tight-fitting splicing applications, including installation in small wire ways or panels.
| Wire/Cable Class: | Class B, Class C |
| Aluminum Conductor Max AMP: | 1395 Amp |
| Voltage Rating: | 600 V |
| Color: | Black |
| Application: | Wire Termination |
| Environmental Conditions: | 90 C |
| Material: | Aluminum |
| Number Of Poles: | 1 |
| Temperature Rating: | 90 C |
| Number Of Conductors: | 6 |
| Standard: | UL 486A/B |
| Wire Type: | Class B & C |
| Finish: | Plastisol Insulated |
| Wire Size: | 750-250 MCM |
| Special Features: | (6) 750-250 MCM - Dual Rated |
| Type: | Stacked Double Sided Entry |
| Size: | Lequals4.950 - Wequals4.970 - Hequals4.920 IN |
