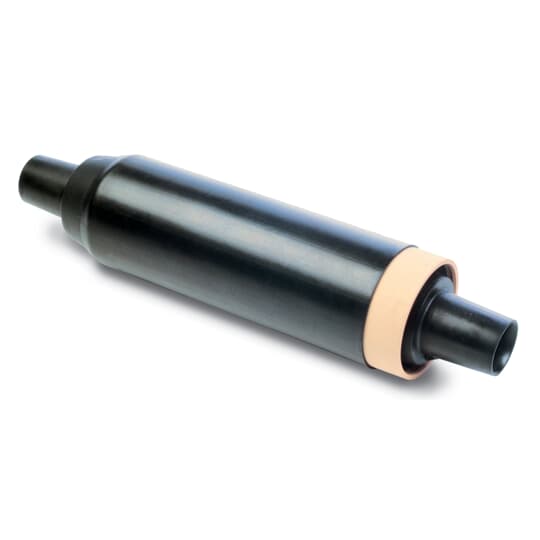

ABB - Installation Products 115 Kv Transmission Cable Joint
ABB - Installation Products #:115TCJN46252P6QDDNB
SKU: ABBI115TCJN46252P6QDDNB
UPC: 783786348473
SKU: ABBI115TCJN46252P6QDDNB
UPC: 783786348473
Your Price: $11,454.23 / EA
ABB - Installation Products 115 Kv Transmission Cable Joint
Ask about this product
Specification Sheet
Weight:
Country of Origin:
Lead Time: 0 Days
Detailed Description
115kV, Transmission Cable Joint, Housing Type - Non-Shieldbreak, Housing Style 4, Housing Size 6 - Bore Diameter 2.850 inch, Insulation Range 3.249-3.620 inch, Connector Type - Copper, Conductor Code 52P - 1.563-1.605 inch Diameter, Heatsink Size 6 - 3.250 inch Outside Diameter, Heatsink Bore Diameter Q - 1.625 inch, Type Shield D - Copper Tape and Neutral Wire, Metallic Screen Continuity Kit D - 4/0 Bonding Cable 6 foot long quantity 3 with Split Bolts quantity 12, Armour Kit - Not Required, Outer Jacket Restoration Kit B - Heat Shrink Standard package.
| Number Of Conductors: | 2 |
| Color: | Black |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Special Features: | Each Cable Joint is produced exactly to design, producing a quality not possible with field molding equipment or tape. Electrically tested in the factory to ensure consistent quality. Molding is done in the factory, reducing on-site time - no penciling |
| Application: | For use on Solid Dielectric Cables - providing permanent, fully-shielded, fully submersible cable joints for direct burial or vault applications |
| Standard: | ANSI C119.4, Shield Test IEEE 592 |
| Temperature Rating: | 90 C |
| Type: | Transmission Cable Joint - Non-Shieldbreak |
| Conductor Range: | 1.563 to 1.605 in |
| Voltage Rating: | 115 kV |
