Ask about this product 100W 24V EXT.ENV. CONTROL DCPS
Specification Sheet
Weight:0 lbs
Country of Origin:PH
Lead Time: 0 Days
Your Price: $468.52 / EA
Save 0%

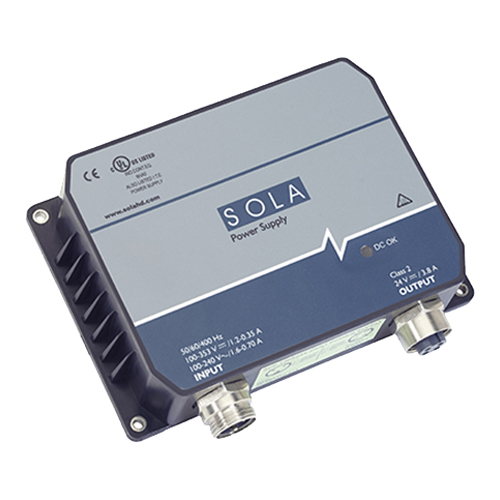

SolaHD 100W 24V EXT.ENV. CONTROL DCPS
Ask about this product 100W 24V EXT.ENV. CONTROL DCPS
Specification Sheet
Weight:0 lbs
Country of Origin:PH
Lead Time: 0 Days
| Length: | 11 IN |
| Phase: | 1 |
| Number Of Receptacles: | 2 |
| Application: | Process Control, Semi-Conductor Fabrication, Automated Service Equipment |
| Cable Size: | Use UL 758 wire rated min. 24 V, VW-1/FT-1, max. 3.05 m. |
| Efficiency: | 85 |
| Enclosure: | IP66/67 Versatile Protection, UL50 Type4X |
| Environmental Conditions: | 10 to 95 Relative Humidity |
| Fuse Rating: | Internally fused; fuses not replaceable. |
| Height: | 5 in |
| Mounting: | Chassis Mounted Using Integral Mounting Tabs |
| Receptacle Configuration: | Input: 3-PIN IP67 molded plug (quick disconnect). Output: 4-PIN IP67 molded receptacle |
| Special Features: | Available in intelligent and non-intelligent models, Single, dual and triple output modules configurable in combinations up to 24 different outputs, Single phase and three phase inputs, I2C control in intelligent modules, End mounted intelligent fan (spee |
| Standard: | UL Recognized Component, ITE, E137632, UL 60950-1/CSA C22.2 No. 60950-1, 2nd Edition; CE Low Voltage Directive, IEC/EN 60950-1, 2nd Edition |
| Type: | SHP Series: Heavy Duty Modular Power Supplies |
| Voltage Rating: | Input Voltage 24 V |
