Your Price: $16.18 / EA

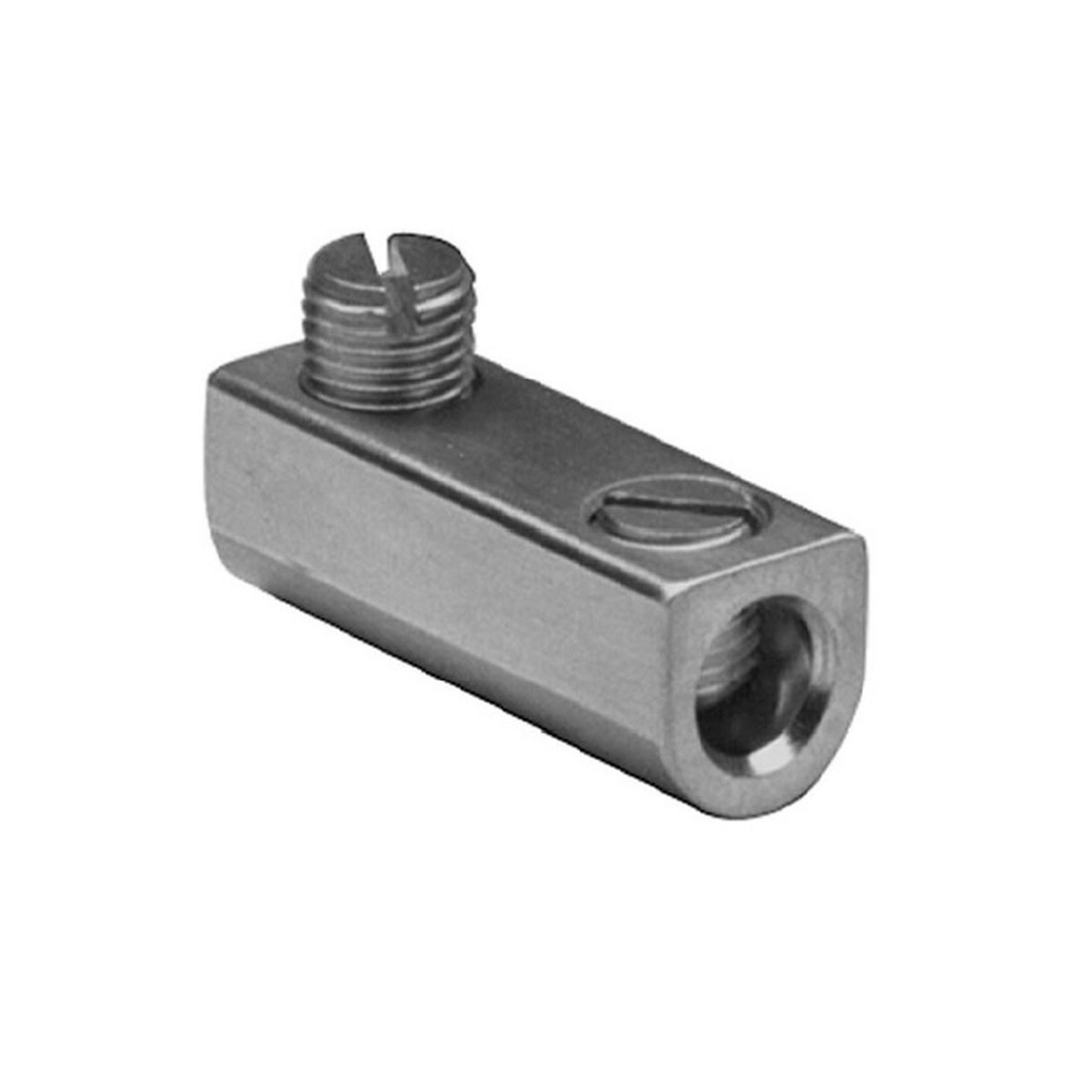

Burndy 1/0-14 DUAL RATED SPLICE
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/0-14 DUAL RATED SPLICE
Specification Sheet
Detailed Description
Aluminum Mechanical Splice, 1/0-14 AWG, 7/16" Screw Dia, 2 Screws, Al/Cu Rated, Tin Plated.
| Material - Hardware: | Aluminum |
| Physical Attribute - Screw Type: | Slot |
| Product Name: | AMS0, AL Set Screw Splice, 1/0-14 AWG, 2 Screws, Al/Cu Rated |
| Dimension - H1 Height inch: | 0.75 in |
| Dimension - Width fraction: | 3/4 in |
| Application: | For Use With Copper And Aluminum Conductors |
| Material: | Aluminum |
| Special Features: | Features: All Splicer/Reducers Are Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum, PENTROX Oxide Inhibiting Joint Compounds Are Recommended For All Aluminum Applications, All Connectors A |
| Temperature Rating: | 194 F |
| Type: | AMS, Dual Rated |
| Conductor Size: | 14-1/0 AWG |
| Standard: | UL467 |
