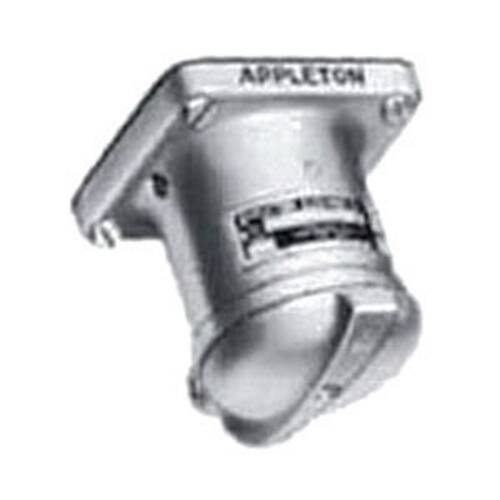

Appleton Electric AE342 AE Series Grounding Style 2 Receptacle, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 14 - 8 AWG, Amperage Rating: 30 AMP, Voltage Rating: 600 VA...
$0.00
Appleton Electric #: AE342
SKU: APPLAE342
UPC: 781381129404
SKU: APPLAE342
UPC: 781381129404
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Material: | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Connection: | Pressure Wire Terminal |
| Amperage Rating: | 30 AMP |
| Mounting: | Box |
| Standard: | UL 1682, UL 1686 |
| Voltage Rating: | 600 VAC, 250 VDC |
| Wire Size: | 14 - 8 |
| Application: | For AEP3461 Clamping Ring Plug |
| Special Features: | Spring door; Weatherproof; Grounding style: shell and extra pole; Contacts exert constant pressure along the entire contact surface, providing electrical continuity; Solid brass contacts with beryllium copper springs; Insulating blocks provide high degree |
| Type: | AE Series Grounding Style 2 Receptacle |
