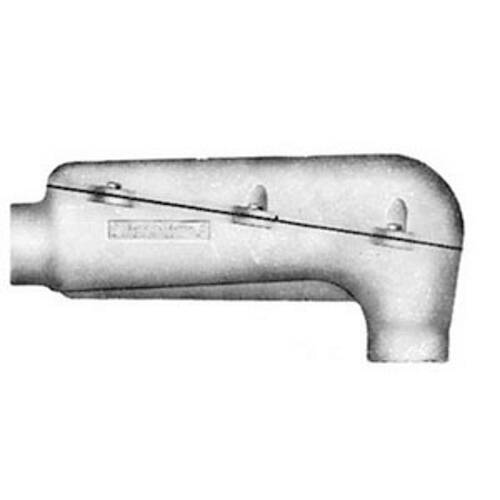

Appleton Electric BLB350-M Mogul UNILETS Type LB NEC 6X Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 3-1/2 IN, Length: 24.31 IN, Width: 7 IN, Height: 10-1/4 IN...
$1,119.61
Appleton Electric #: BLB350-M
SKU: APPLBLB350-M
UPC: 781381474320
SKU: APPLBLB350-M
UPC: 781381474320
| Connection: | Tapered Female Threaded |
| Hub Size: | 3-1/2 |
| Material: | Malleable Iron |
| Width: | 7 in |
| Finish: | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Application: | For Use With Rigid Metal Conduit And IMC |
| Special Features: | Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws t |
| Standard: | UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Type: | Type LB NEC 6X Conduit Outlet Body With Assembled Cover And Gasket |
| Length: | 24.31 in |
| Height: | 10-1/4 IN |
