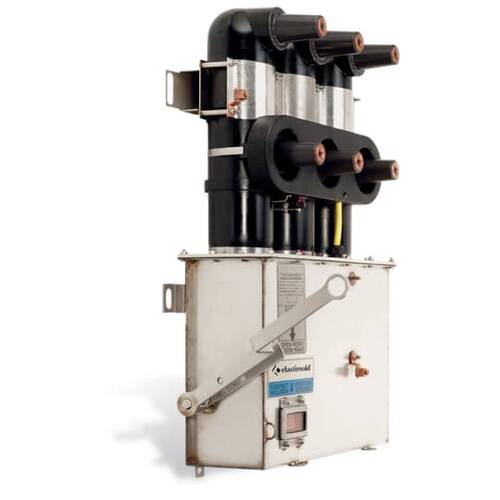

ABB - Installation Products MVI3-21-27-62 Vac Int,3ph,27kv/12.5ka,600a/200a
$70,204.93
ABB - Installation Products #: MVI3-21-27-62
SKU: ABBIMVI3-21-27-62
UPC: 075114430111
SKU: ABBIMVI3-21-27-62
UPC: 075114430111
| Type: | Molded Vacuum Interrupter - Triple Phase |
| Special Features: | EPDM Molded Rubber Insulation. Field Programmable with a Wide Range of Time-Circuit Characteristic (TCC) Curves and Trip Settings. Control Monitors the Circuit Condition |
| Application: | Make, Carry and Automatically Interrupt Currents |
| Standard: | ANSI C37.60, IEEE 386, ANSI C57.12.28 |
| Voltage Rating: | 27 kV |
| Amperage Rating: | 600 A |
| Material: | EPDM Rubber Insulation |
| Phase: | Triple Phase |
| Width: | 19 in |
| Height: | 33.29 in |
| Operating Temperature: | -40 |
