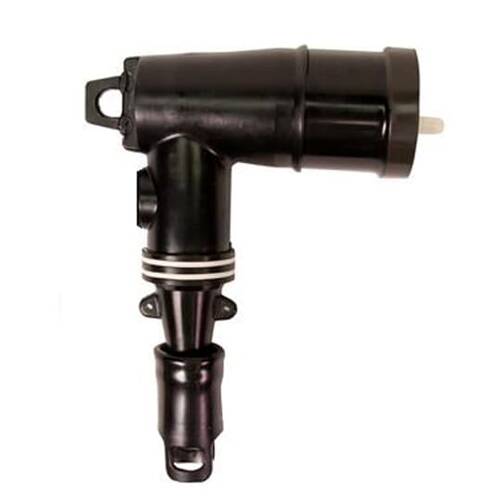

ABB - Installation Products 161LRJS-D5260 15kv 200a Elbow, No Sealing Kit
$130.84
ABB - Installation Products #: 161LRJS-D5260
SKU: ABBI161LRJS-D5260
UPC: 075114418232
SKU: ABBI161LRJS-D5260
UPC: 075114418232
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Voltage Rating: | 15 kV |
| Type: | Loadbreak Elbow Connector and Jacket Seal |
| Application: | The 161LRJS is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
| Special Features: | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal |
| Conductor Range: | 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG |
| Environmental Conditions: | ed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
