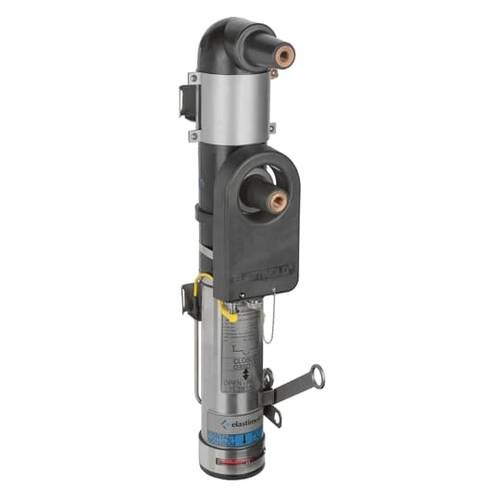

ABB - Installation Products MVI1-21-15-22-380 15kv 1ph Mold Vac Inter 200/200 380
$84,566.30
ABB - Installation Products #: MVI1-21-15-22-380
SKU: ABBIMVI1-21-15-22-380
UPC: 783786028900
SKU: ABBIMVI1-21-15-22-380
UPC: 783786028900
| Special Features: | EPDM Molded Rubber Insulation. Field Programmable with a Wide Range of Time-Circuit Characteristic (TCC) Curves and Trip Settings. Control Monitors the Circuit Condition |
| Application: | Make, Carry and Automatically Interrupt Currents |
| Standard: | ANSI C37.60, IEEE 386, ANSI C57.12.28 |
| Material: | EPDM Rubber Insulation |
| Operating Temperature: | -40 to +65 C |
| Voltage Rating: | 15 kV |
| Type: | Molded Vacuum Interrupter - Single Phase |
| Length: | 30-5/8 in , 778 mm |
| Phase: | Single Phase |
| Amperage Rating: | 200 A |
